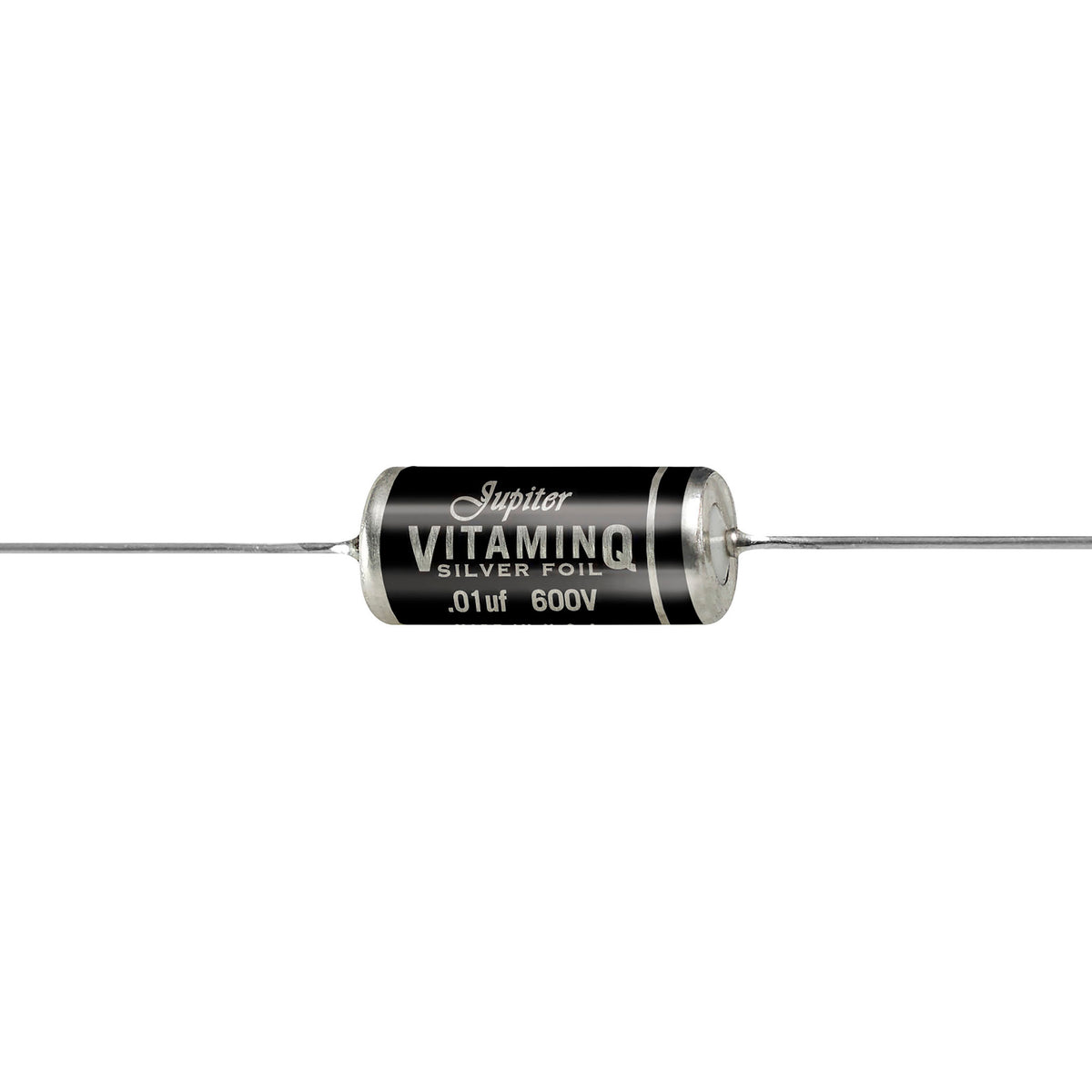

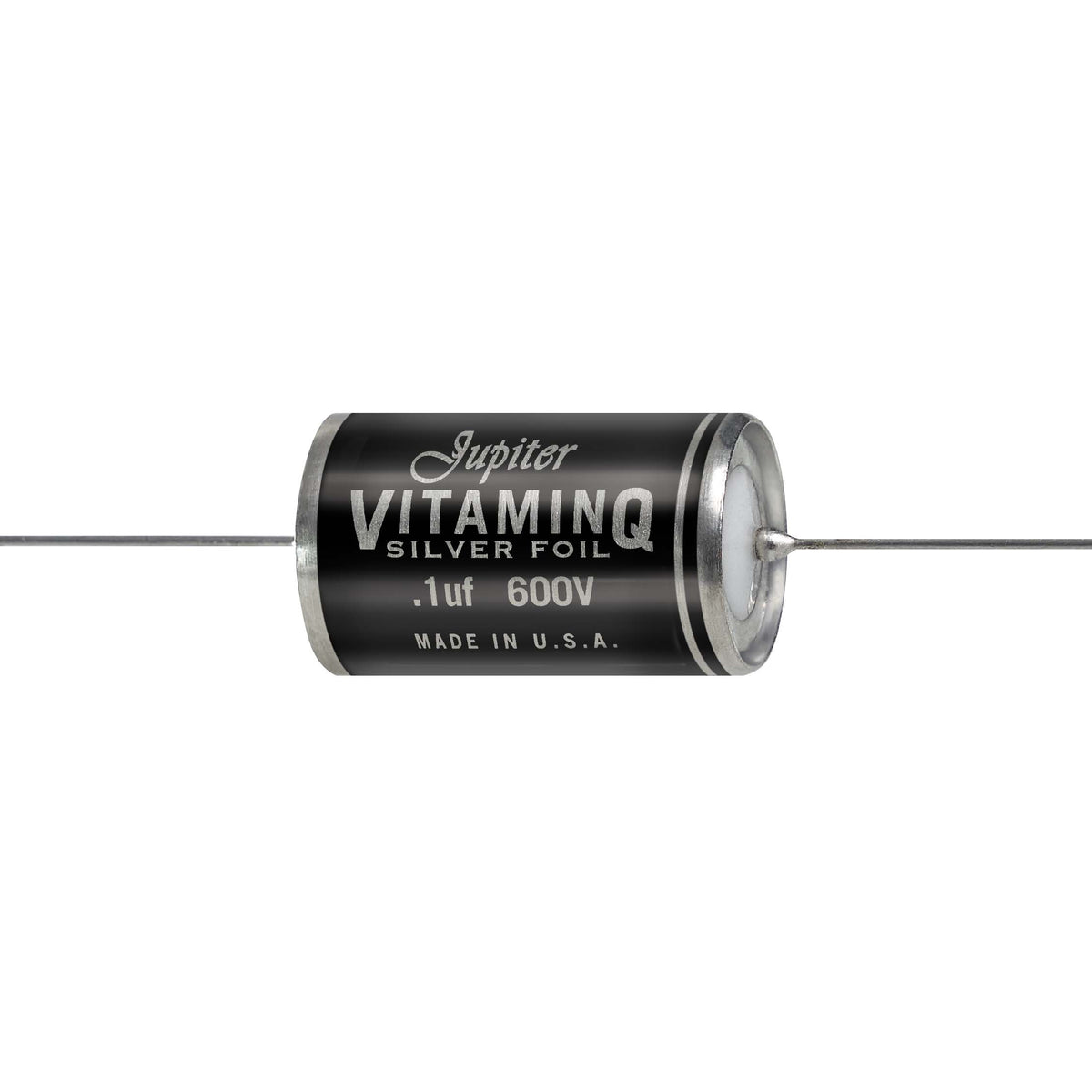

VitaminQ - Silver Foil Paper-in-Oil Capacitors
Jupiter Silver Foil -Vitamin-Q
Sonic Bliss.
Silver Foil and Vitamin-Q are beautifully matched with added dynamics and balance that accompany a surreal quality. Jupiter Silver Foil in Vitamin-Q is the antidote for Audio-Nervosa.
Silver foil recreates a great sense of space, recording height, width and depth are very much more apparent with a great sense of ease to the powerful flow. Weight and dynamics express effortlessly as musical air fills the room like no other capacitor. They are the lushest of all paper-in-oil capacitors, with a velvety midrange and creamy liquidity that is addictive
Vitamin-Qs portray less dramatic transients sounding, with a slightly softer top and bottom end than the Comet Type.
Vitamin-Q: Paper-in-Vitamin-Q Oil
These capacitors utilize the same polymerized impregnation fluid developed by Sprague in the 1940s.
Hermetically Sealed and processed under a deep vacuum for several days.
Hermetic sealing keeps oil from leaking out and provides protection from ingress of moisture to ensure long life.
Glass to metal end seals are soldered into tin-plated brass tubes to form leak-tight joints.
Jupiter Silver Foil Vitamin-Q capacitors are built to Mil-Spec standards yet developed and refined for the ultimate audio experience.
Specifications:
Tolerance: +/- 5%
Operating Temperature: 85°C
Voltage: 600VDC
Pure Silver Foil
Dielectric: Paper-in-Oil
Oil Type: Vitamin-Q
Leads: Pure Silver Wire 5N
Made in the USA of materials from USA and Germany.
Silver Foil Paper-in-Vitamin-Q Oil 600V Capacitors - Datasheet
Jupiter Documents and Datasheet PDF
Value | Voltage | Size - D" x L" | Retail Price |
.01uf | 600V | .38 x .82 | $79.00 |
.022uf | 600V | .50 x .875 | $119.00 |
.1uf | 600V | .67 x. 1.19 | $225.00 |
.22uf | 600V | .67 x 1.44 | $399.00 |
.33uf | 600V | .75 x 2.125 | $525.00 |
.47uf | 600V | .75 x 2.125 | $749.00 |

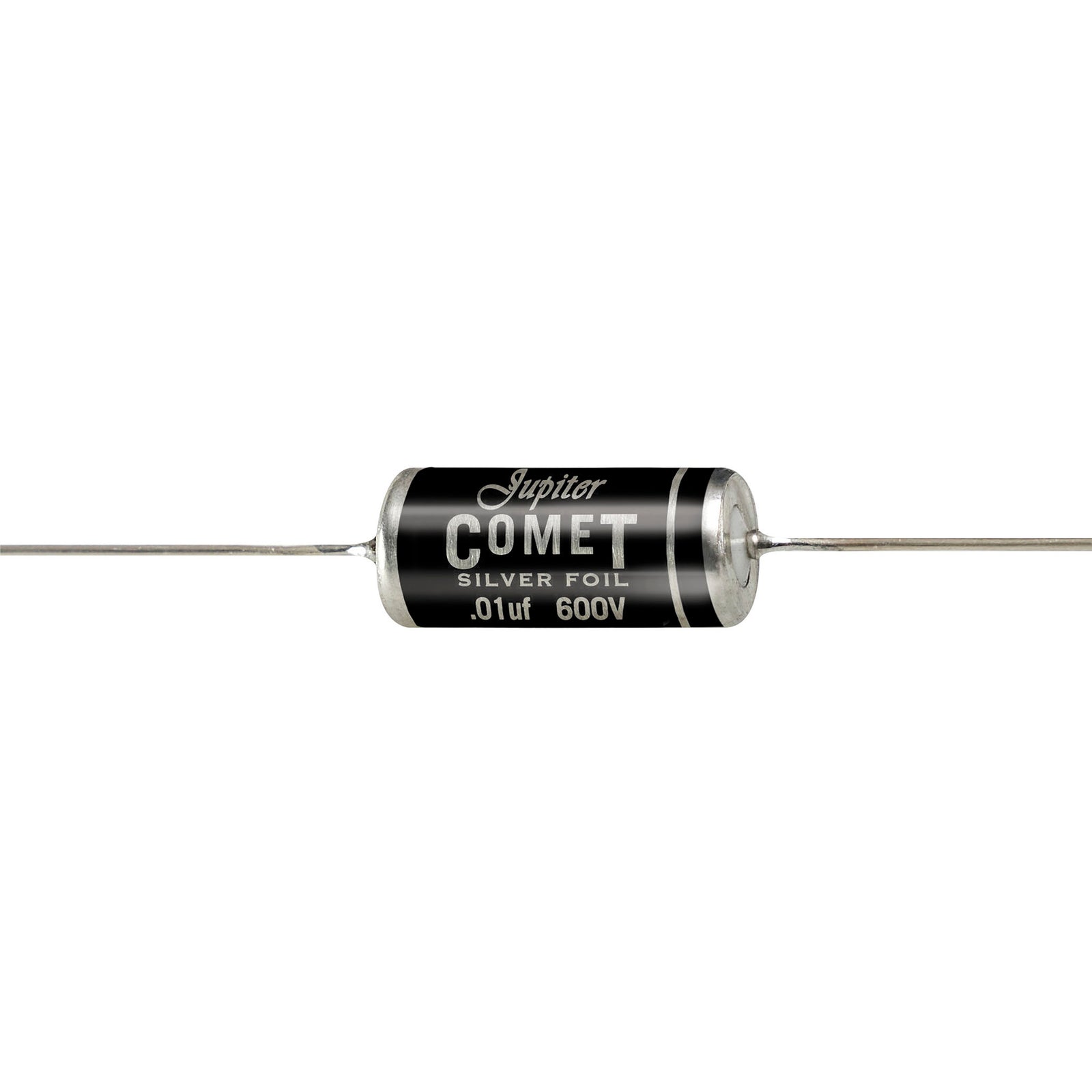

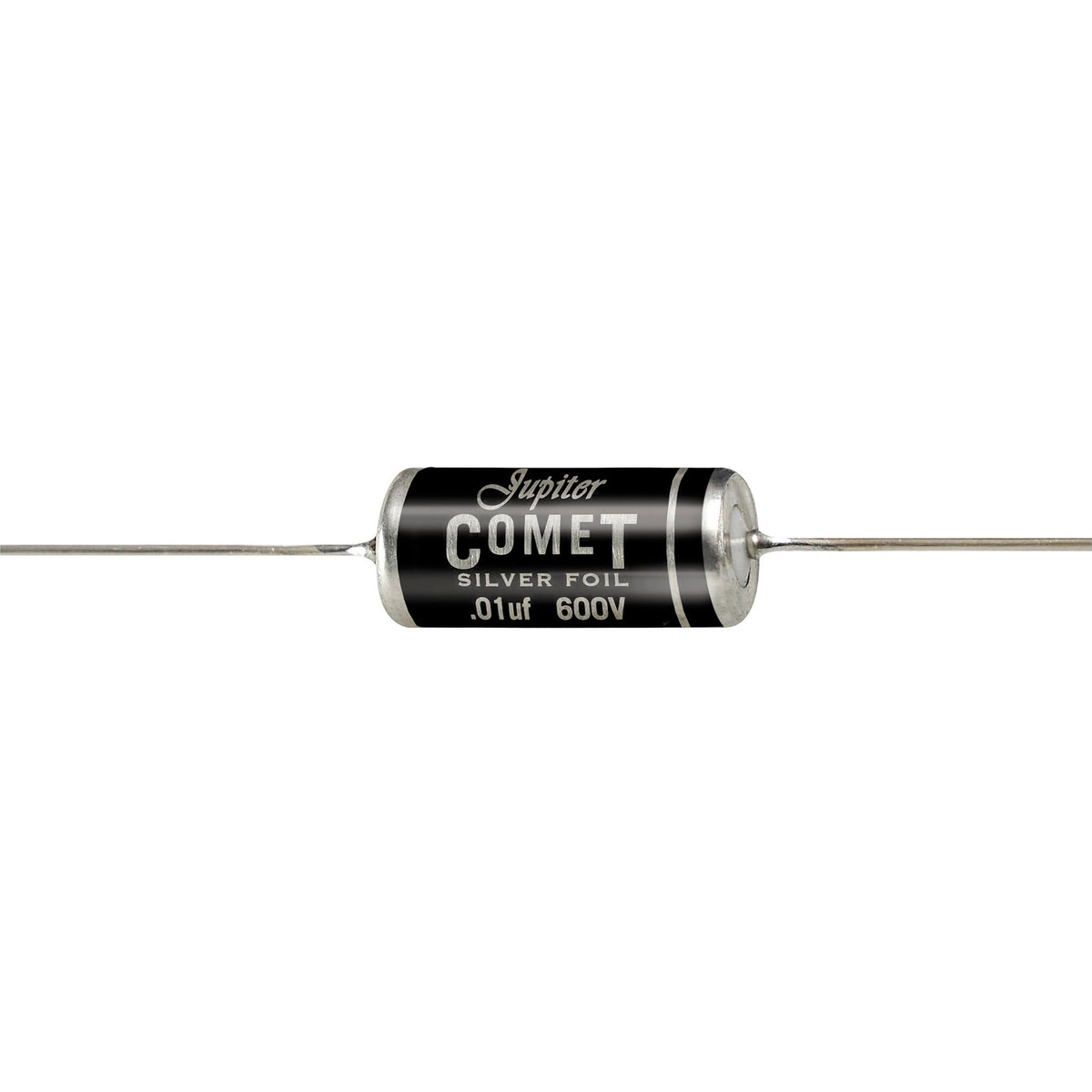

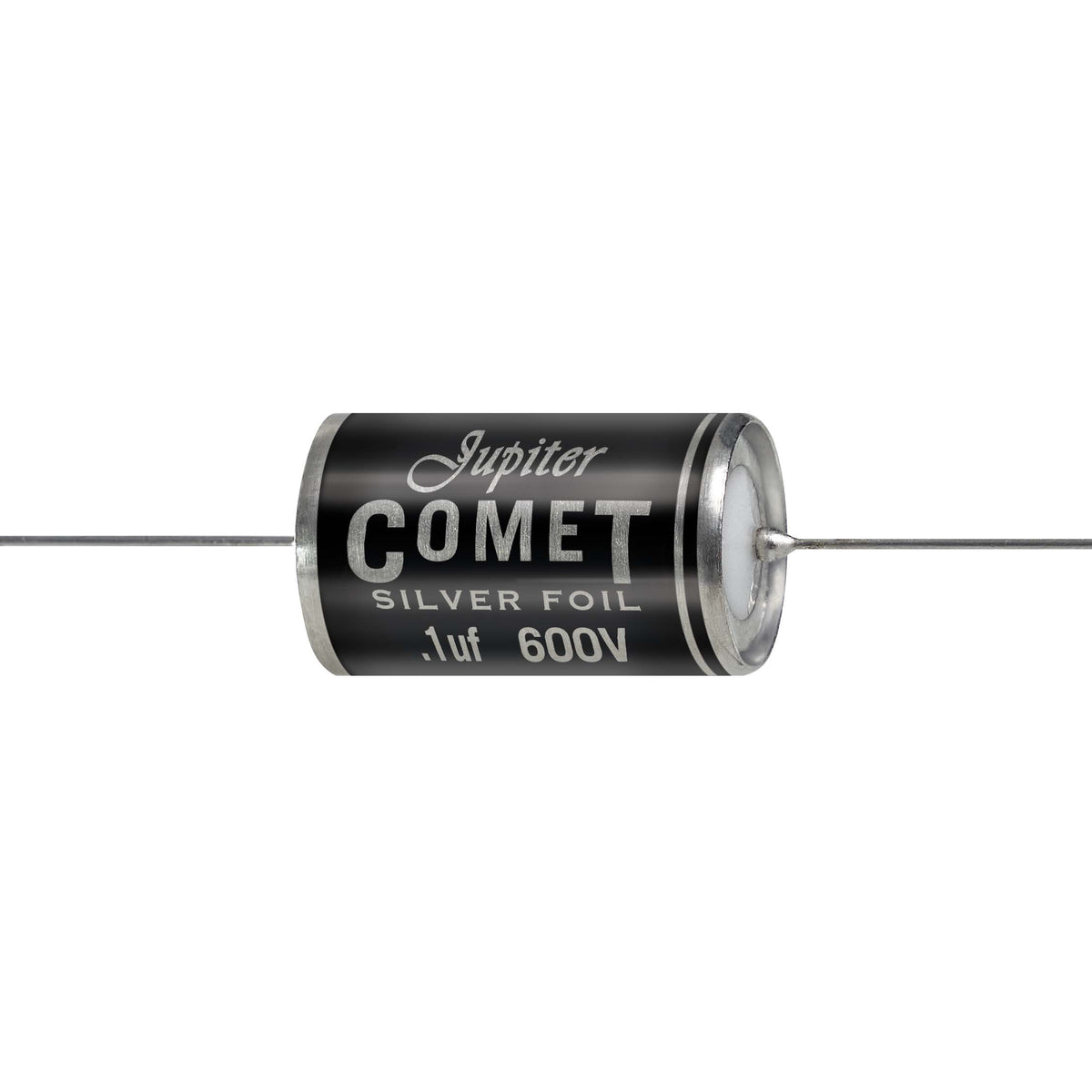

Comet Silver Foil - Paper-in-Oil Capacitors
Jupiter Comet Silver Foil
Ultra-Fidelity.
Silver foil recreates a great sense of space, recording height, width and depth are very much more apparent with a great sense of ease and a powerful flow. Weight and dynamics are expressed effortlessly, musical air fills the room like no other capacitor. Jupiter Silver Foil types are the most musical capacitors available at any price.
Comet Capacitors feature true hermetically sealed cases with mineral oil impregnation construction that dates back to the 1940's.
Mineral Oil delivers more transparency and dynamics than Vitamin-Q type, with deeper and tighter bass accompanied by a more vivid presentation.
Comet: Paper-in-Mineral Oil
Paper in oil construction is one of the original and most reliable oil types.
Jupiter uses the finest quality highly refined USP-grade mineral oils.
Hermetically Sealed and processed under a deep vacuum for several days.
Hermetic sealing keeps oil from leaking out and provides protection from ingress of moisture to ensure long life.
Glass to metal end seals are soldered into tin-plated brass tubes to form leak-tight joints.
Jupiter Silver Foil Comet capacitors are built to Mil-Spec standards yet developed and refined for sonic perfection.
Specifications:
Tolerance: +/- 5%
Operating Temperature: 85°C
Voltage: 600VDC
Pure Silver Foil
Dielectric: Paper in Oil
Oil Type: Mineral Oil
Leads: Pure Silver Wire 5N
Made in the USA of materials from USA and Germany.
Comet Silver Foil Paper in Oil 600V Capacitors - Download datasheet PDF
Jupiter Documents and Datasheet PDF
Value | Voltage | Size - D" x L" | Retail Price |
.01uf | 600V | .38 x 0.82 | $75.00 |
.022uf | 600V | .50 x 0.875 | $115.00 |
.1uf | 600V | .67 x 1.19 | $215.00 |
.22uf | 600V | .67 x 1.44 | $379.00 |
.47uf | 600V | .75 x 2.125 | $725.00 |

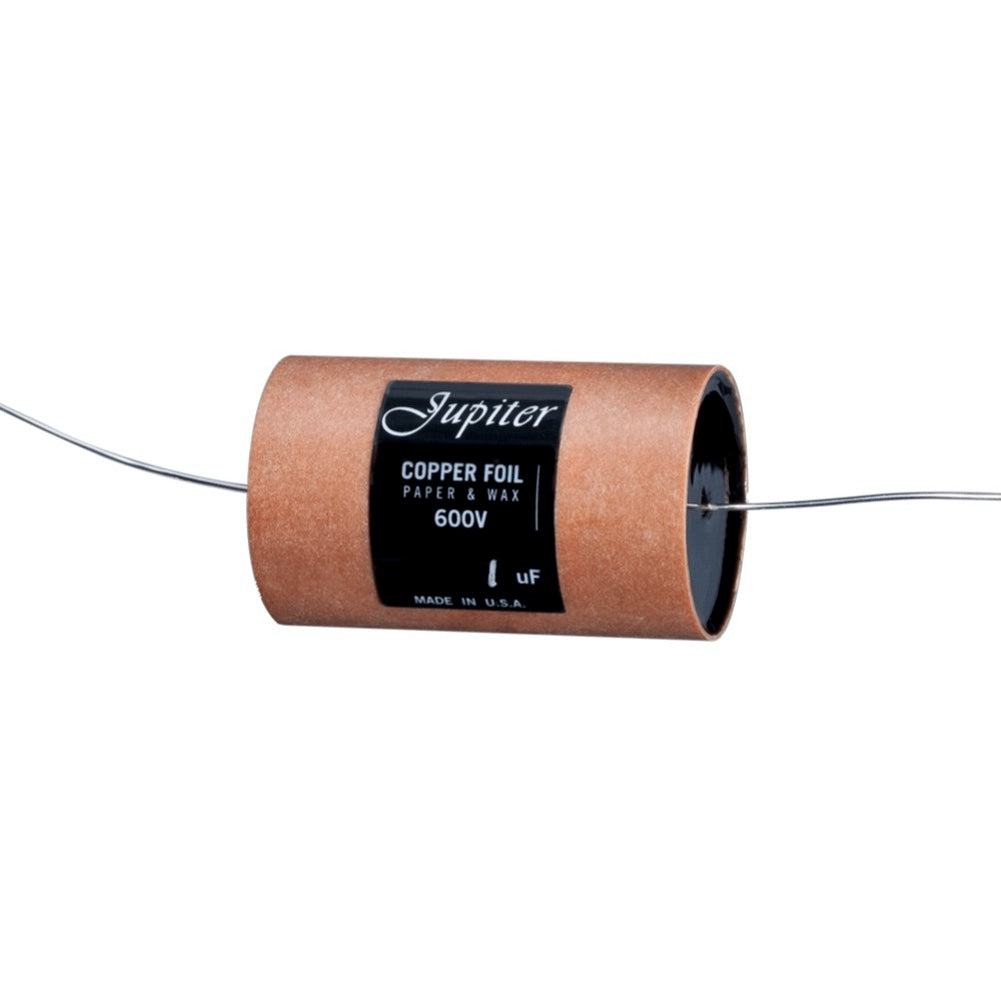

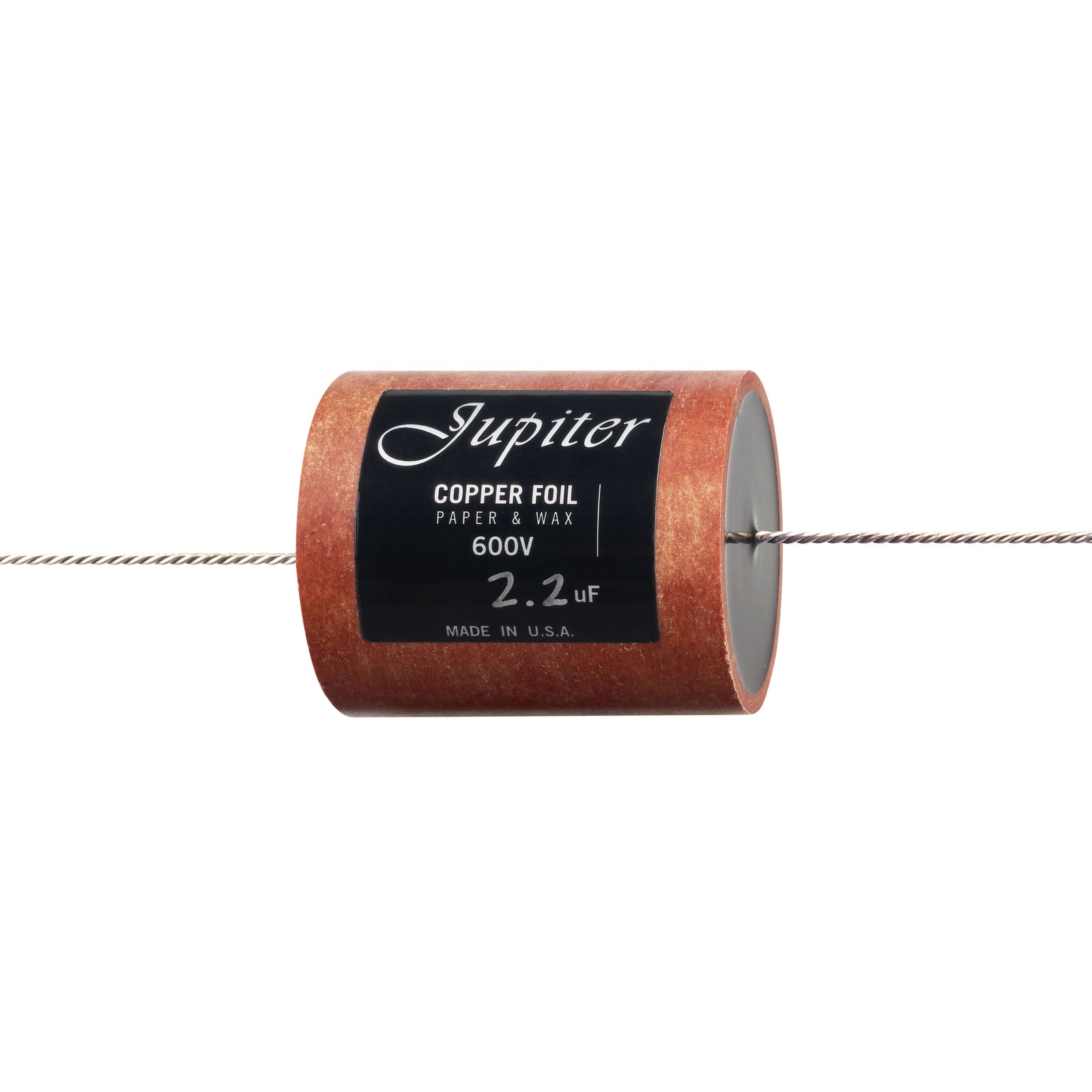

Copper Foil Paper & Wax Capacitors 600V
Download Yazaki-san review of Jupiter 600V Copper Foil-Wax-Paper Capacitors
The finest Copper Foil Paper & Wax Audio Capacitors available.
Tolerance: .1uf - 4.7uf +/- 5%, .001uf - .047uf +/-10%
Operating Temperature: 80°C
Voltage: 600VDC - Tested at 1200VDC
Dielectric: Paper & Wax
Pure Copper Foil - CDA-101 Oxygen Free, Purity 99.99%
Silver 4N Wire Leads
RoHS Compliant
Made in the USA of materials made in the USA.
600V for Electronics
Jupiter Copper Foil Paper & Wax Capacitors 600V - Download Datasheet PDF
Jupiter Documents and Datasheet PDF
Value | Voltage - DC | Size - D" x L" | Retail Price |
.001uf | 600V | .25 x .82 | $38.00 |
.01uf | 600V | .38 x .82 | $38.00 |
.022uf | 600V | .44 x 1.13 | $38.00 |
.047uf | 600V | .56 x 1.13 | $46.00 |
.1uf | 600V | .56 x 1.38 | $63.00 |
.12uf | 600V | .75 x 1.38 | $65.00 |
.15uf | 600V | .75 x 1.38 | $65.00 |
.22uf | 600V | .82 x 1.38 | $69.00 |
.33uf | 600V | .82 x 2.07 | $86.00 |
.39uf | 600V | .82 x 2.07 | $93.00 |
.47uf | 600V | .82 x 2.07 | $99.00 |
.56uf | 600V | 1.07 x 2.07 | $109.00 |
.68uf | 600V | 1.07 x 2.07 | $119.00 |
.82uf | 600V | 1.32 x 2.13 | $125.00 |
1uf | 600V | 1.32 x 2.13 | $132.00 |
1.5uf | 600V | 1.63 x 2.13 | $145.00 |
2.2uf | 600V | 1.88 x 2.13 | $195.00 |
3.3uf | 600V | 2.13 x 2.50 | $265.00 |
3.9uf | 600V | 2.25 x 2.50 | $300.00 |
4.7uf | 600V | 2.25 x 2.94 | $355.00 |

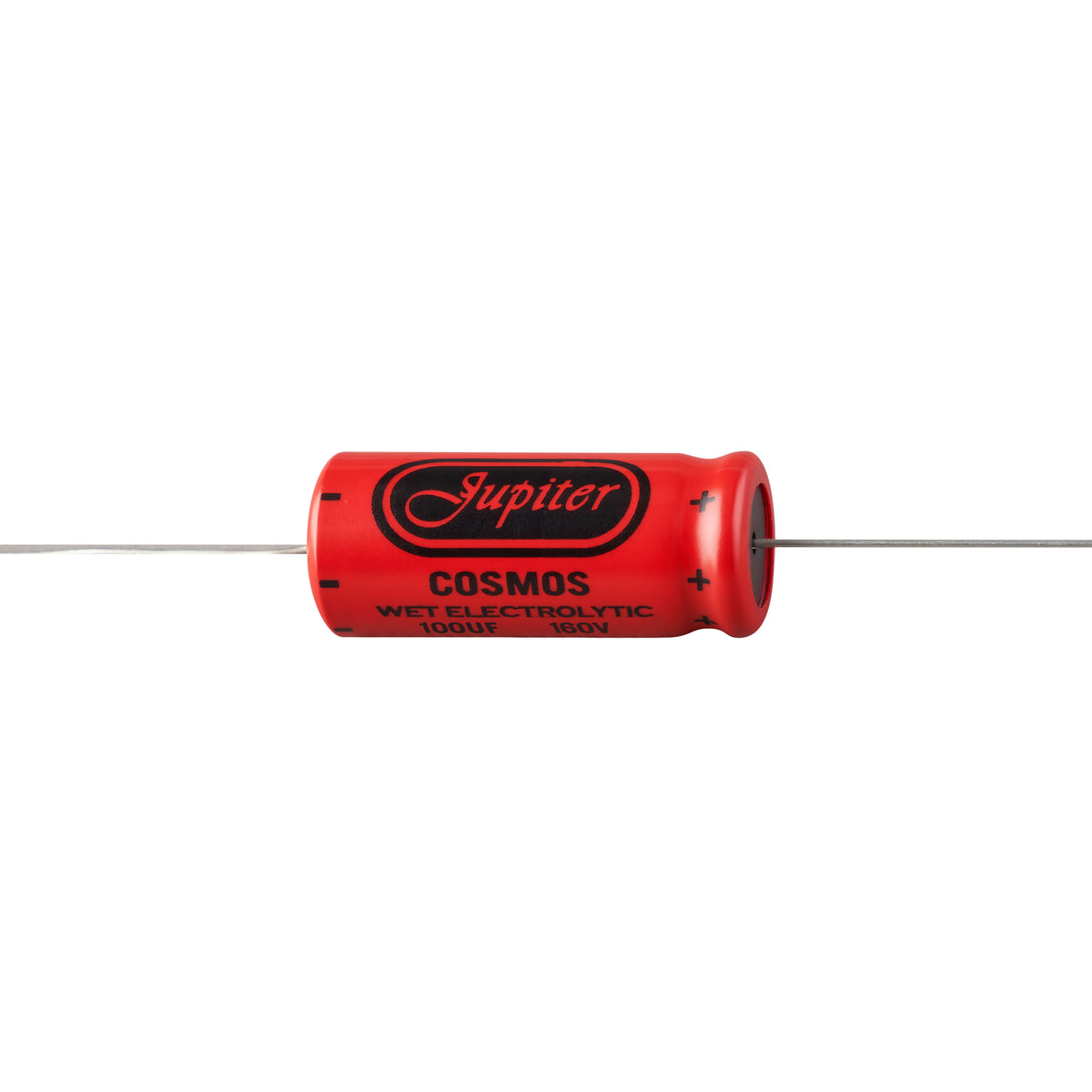

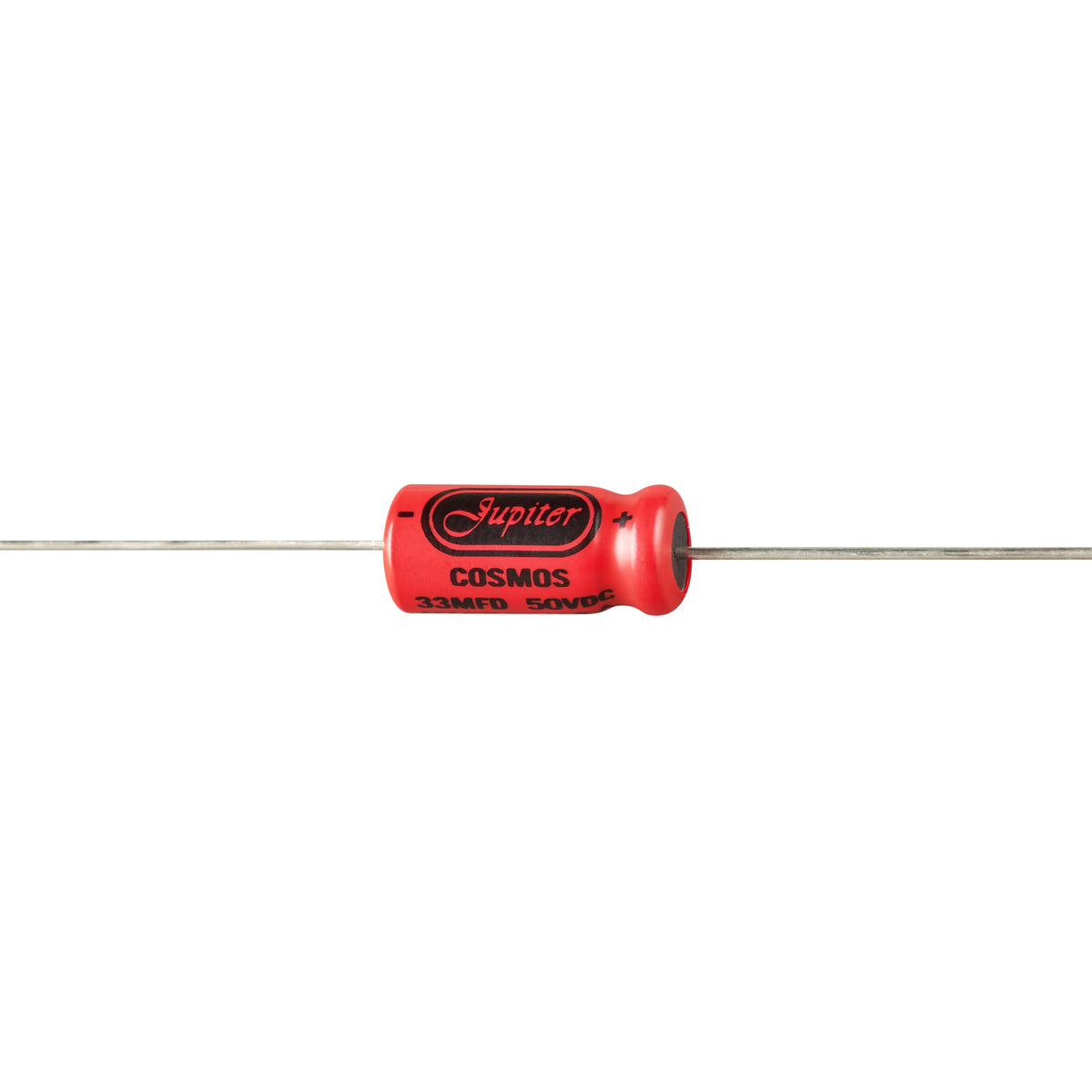

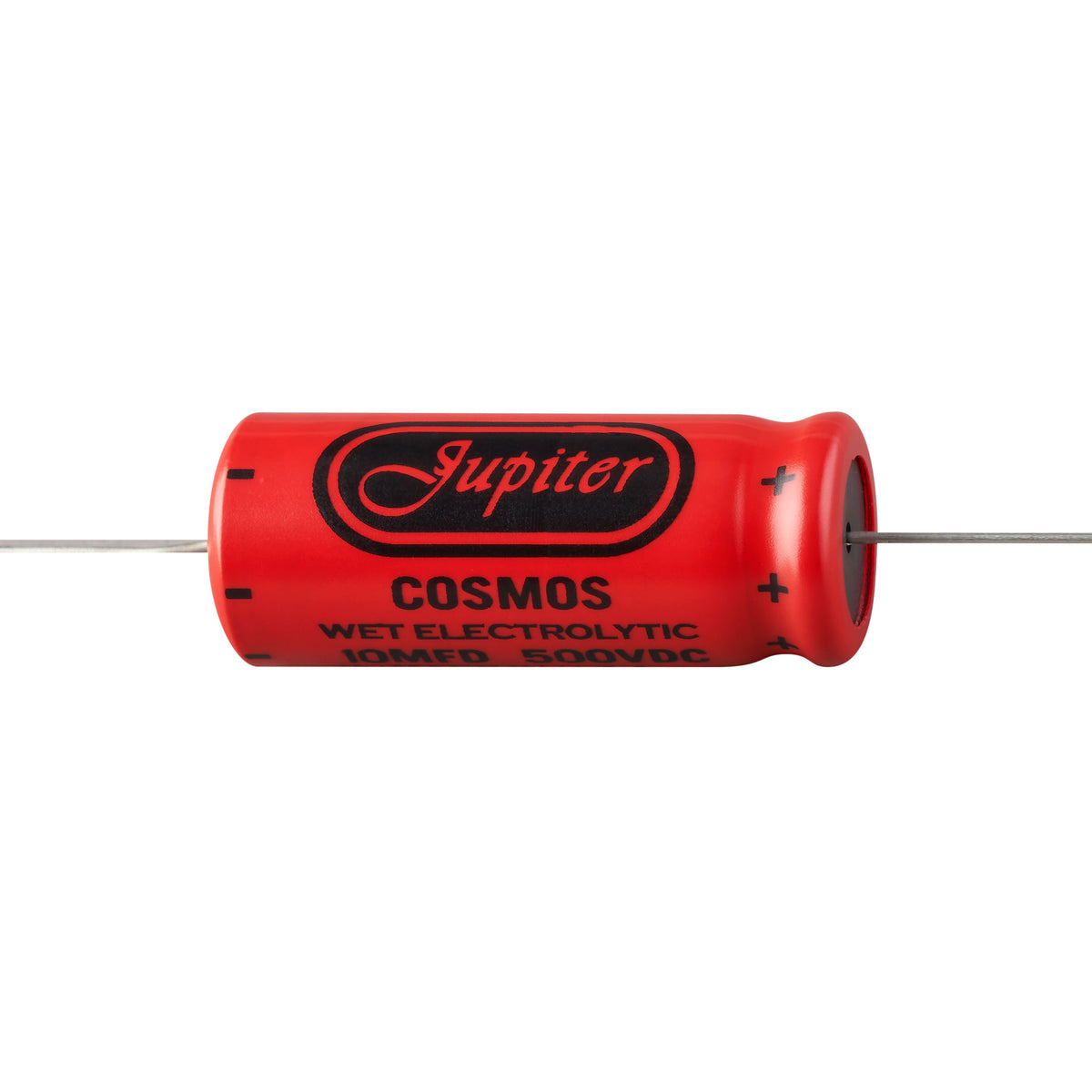

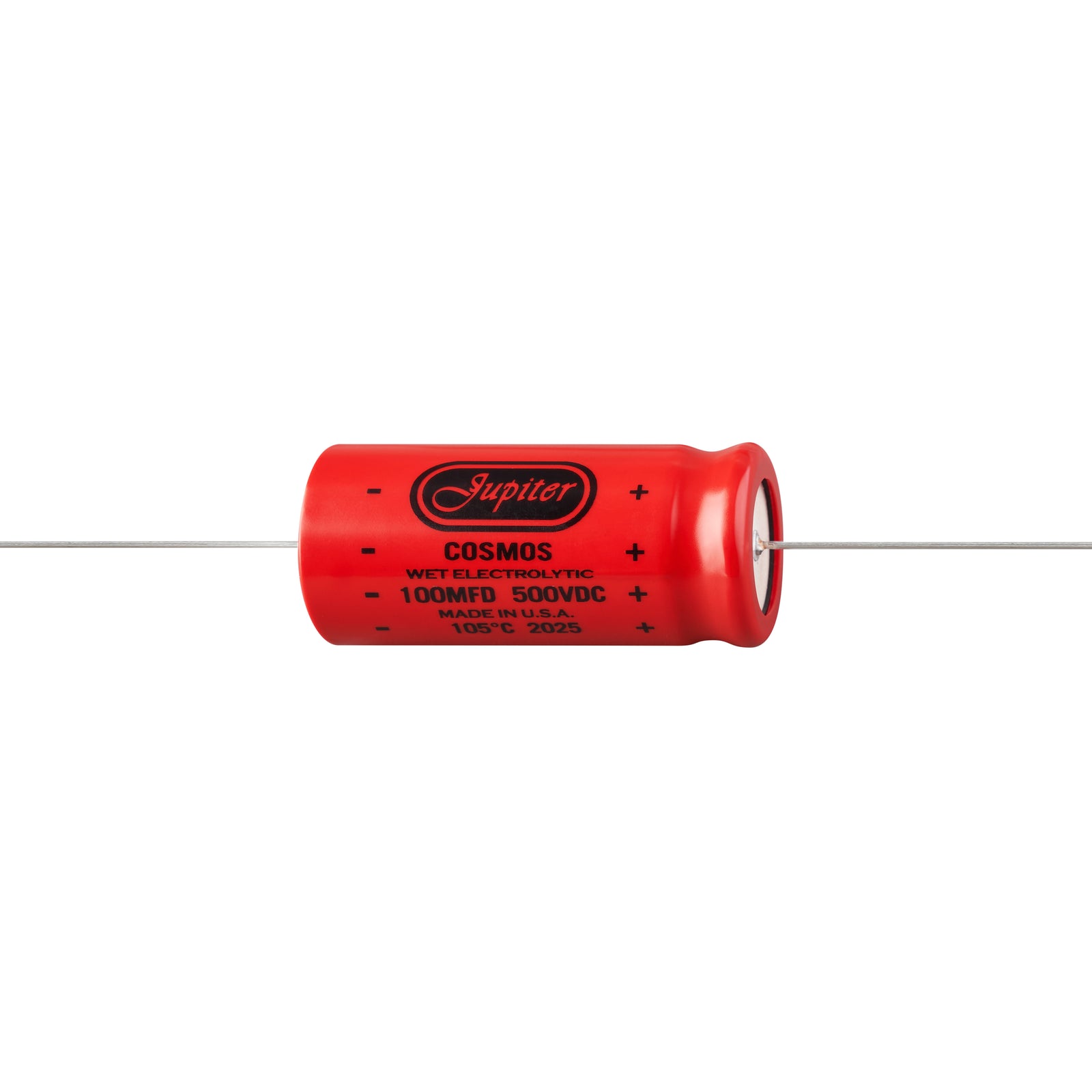

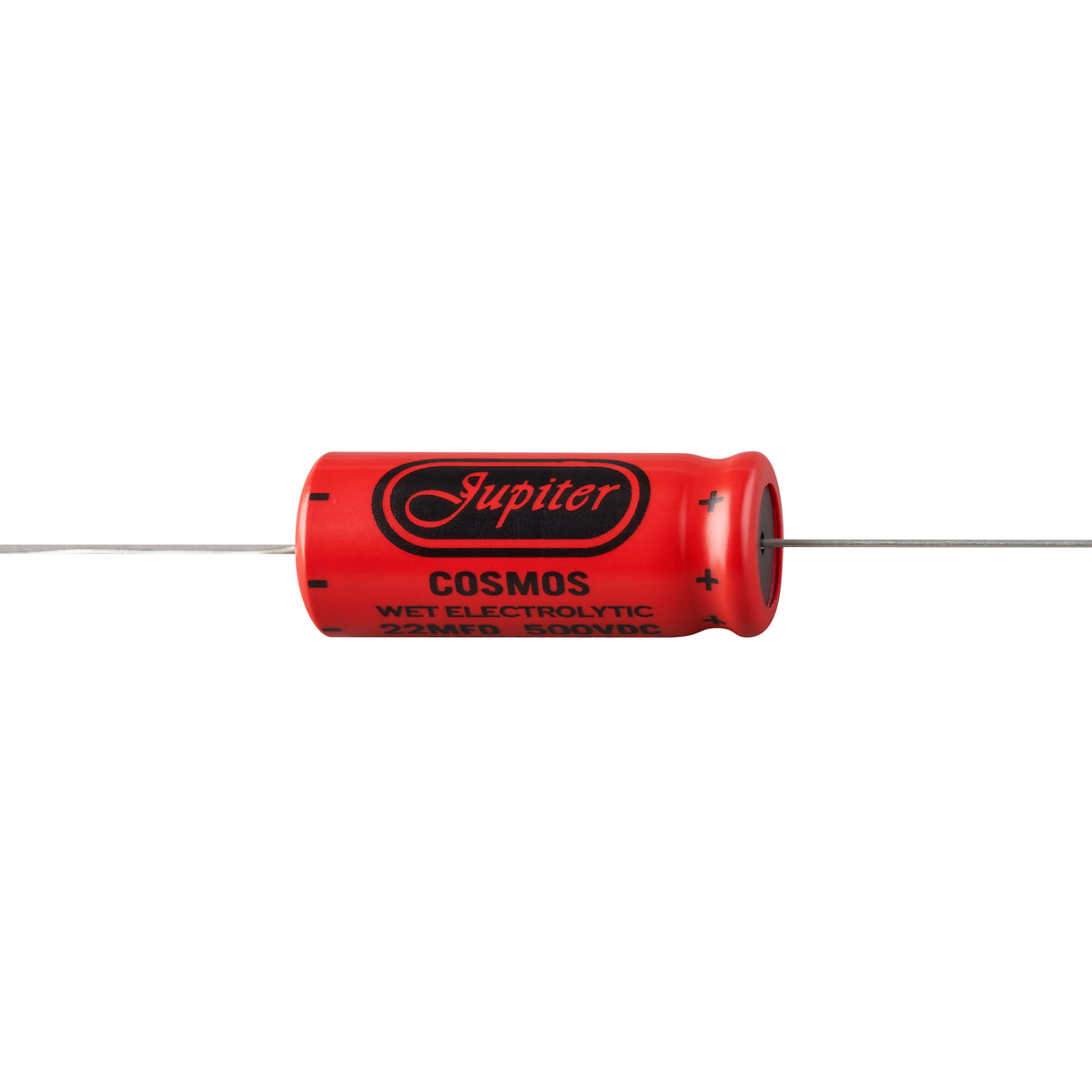

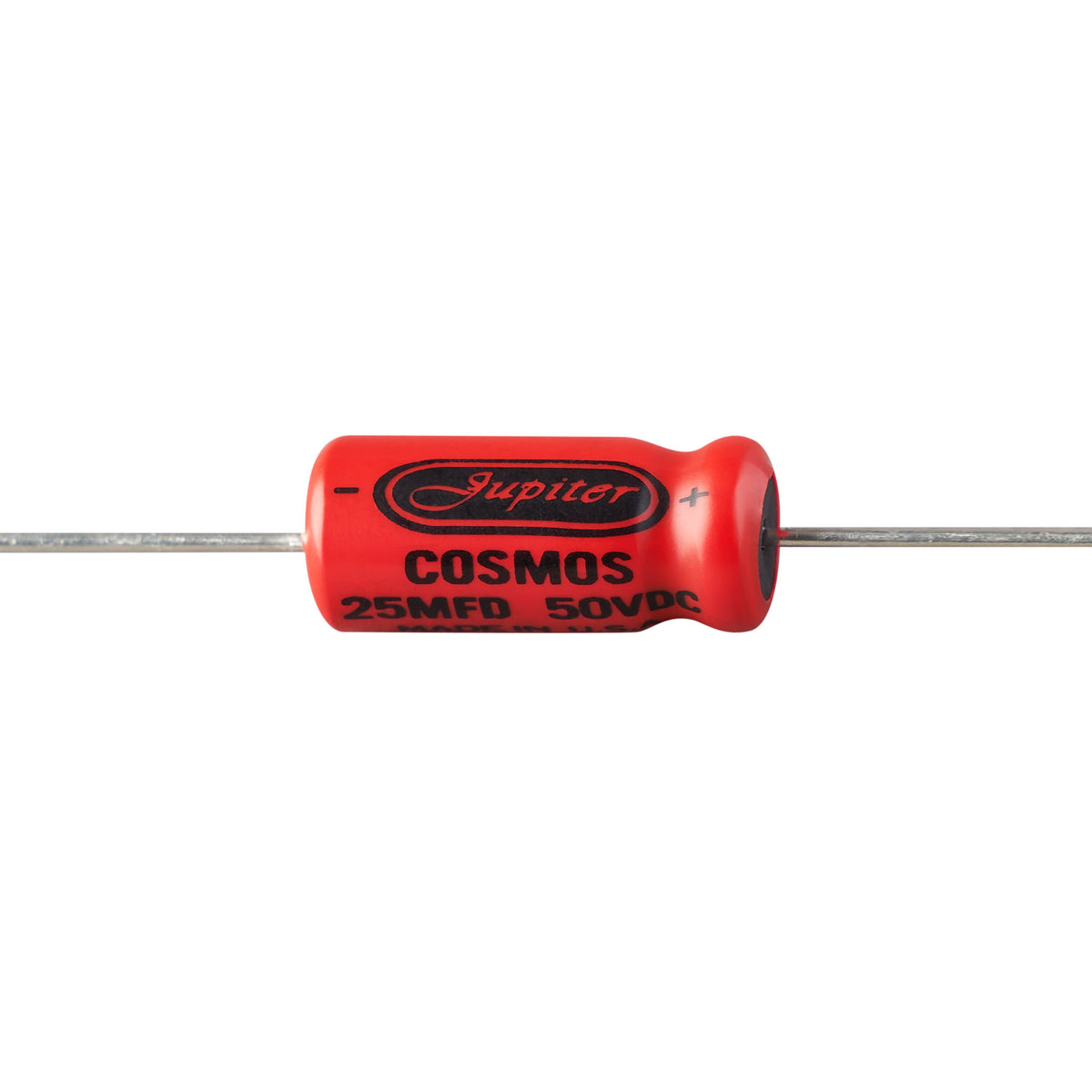

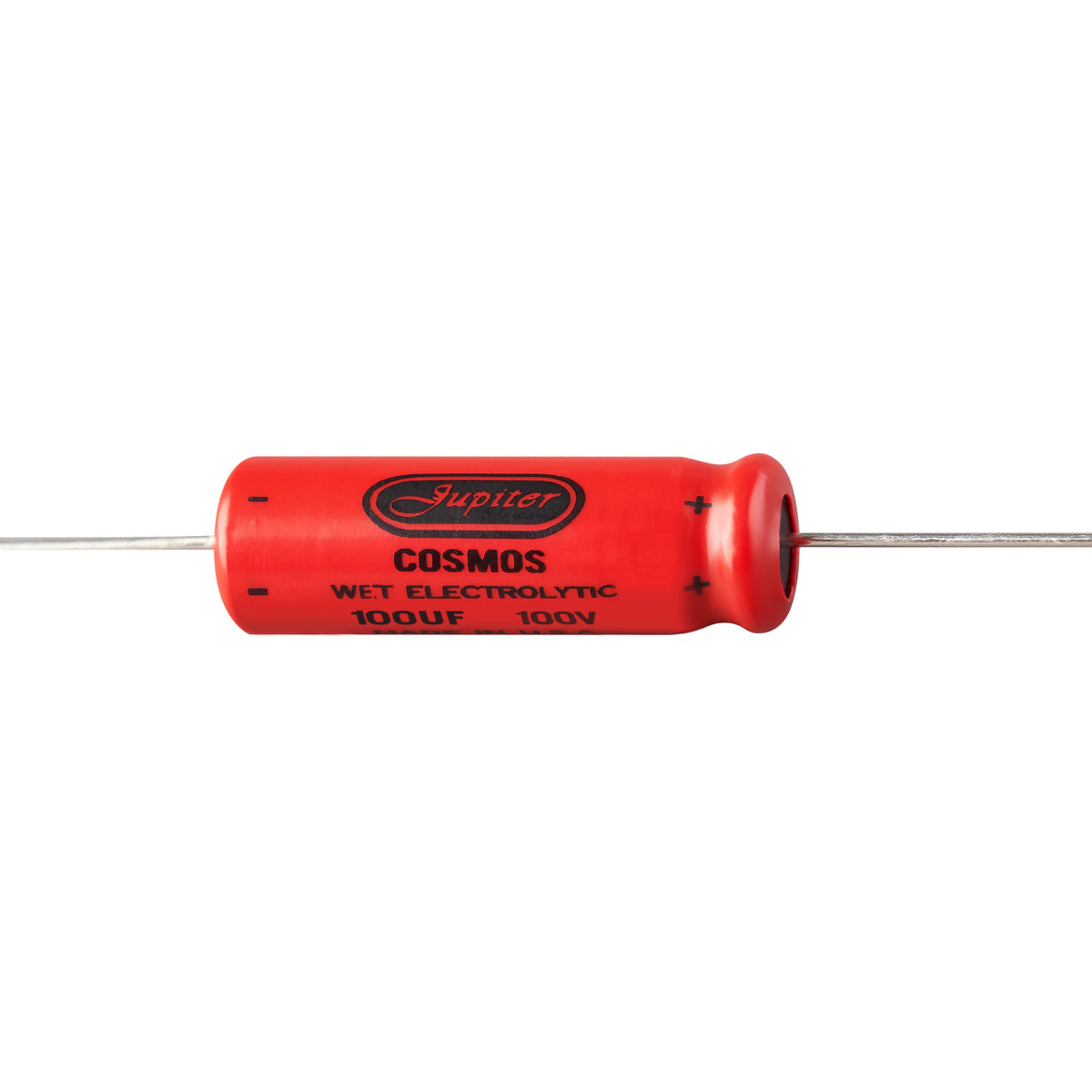

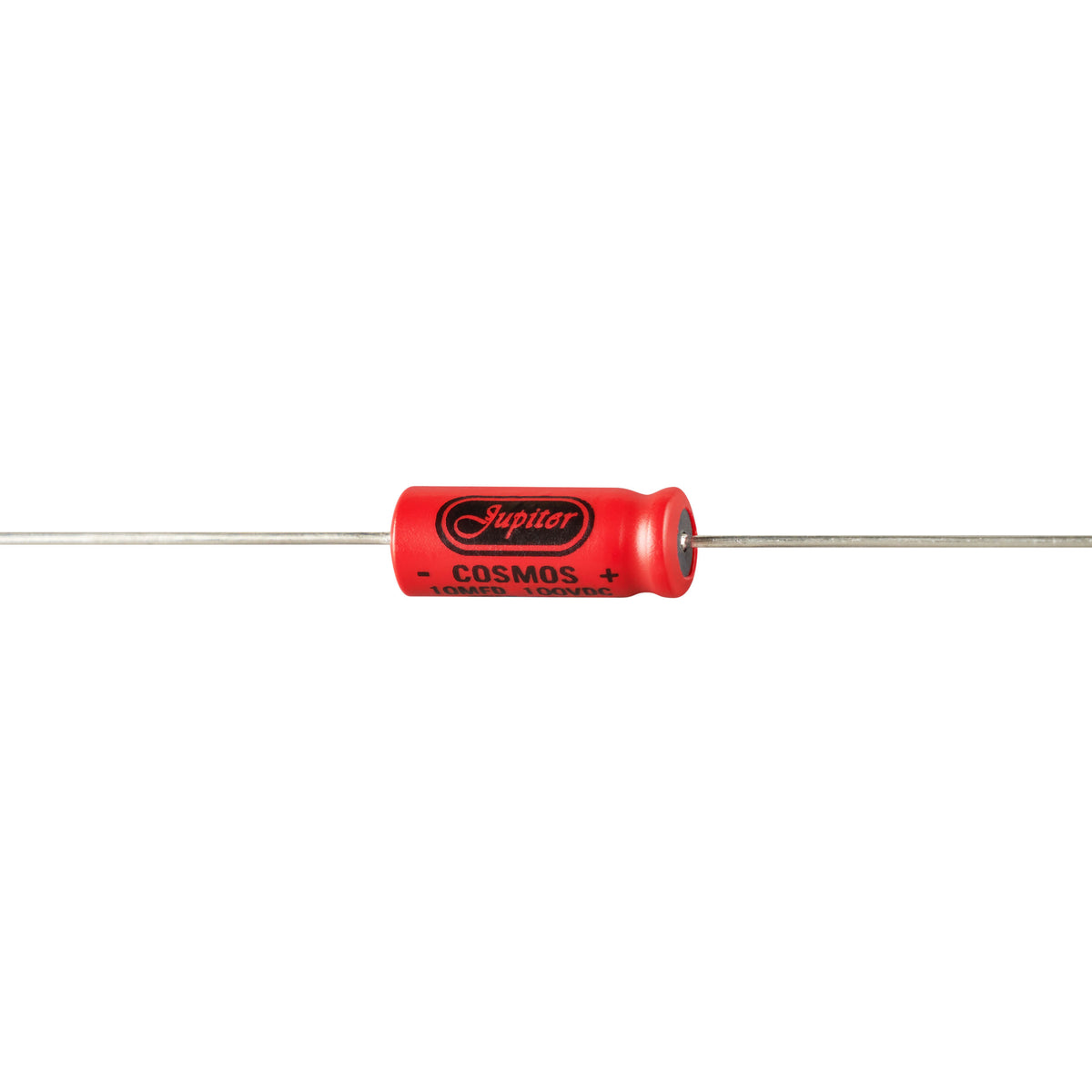

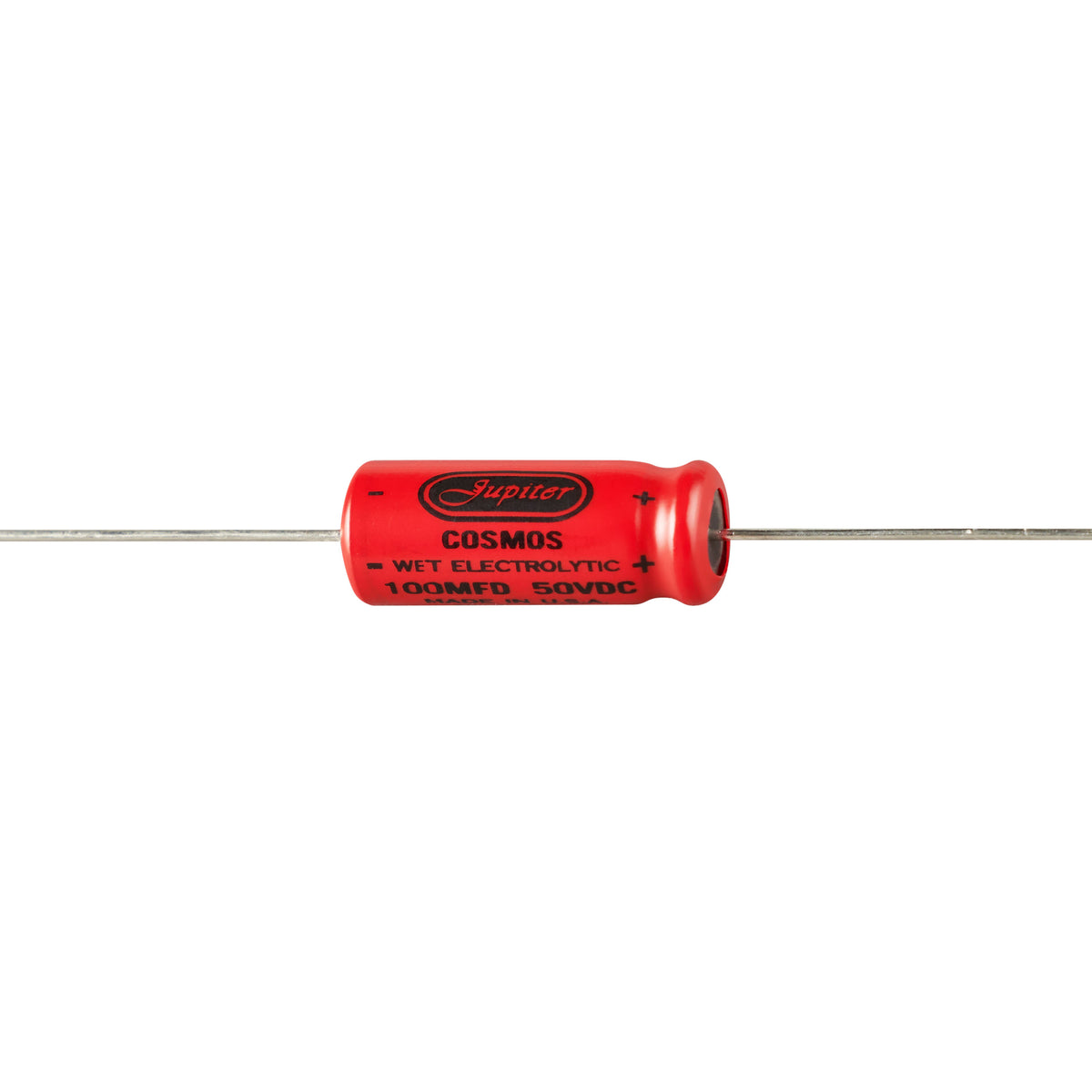

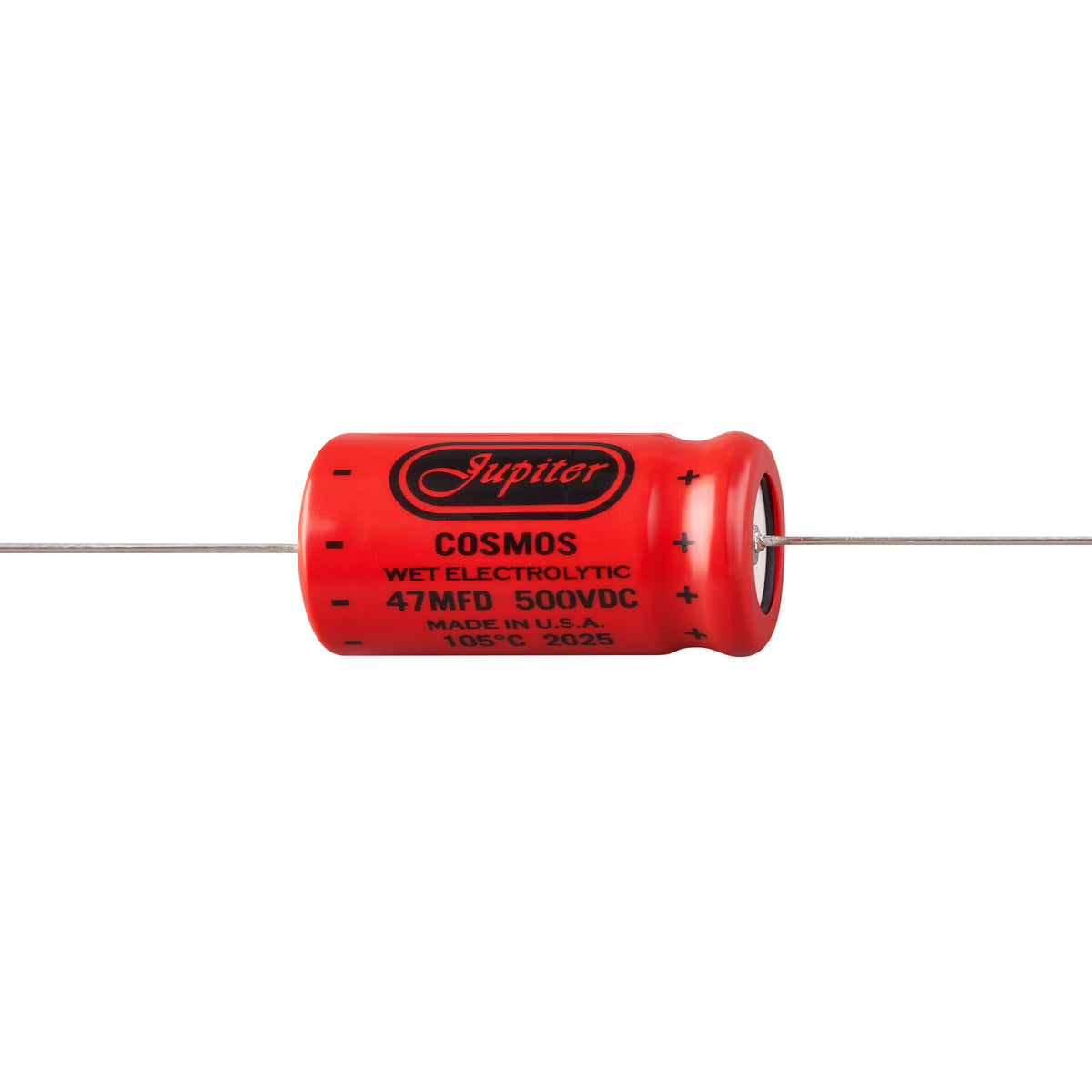

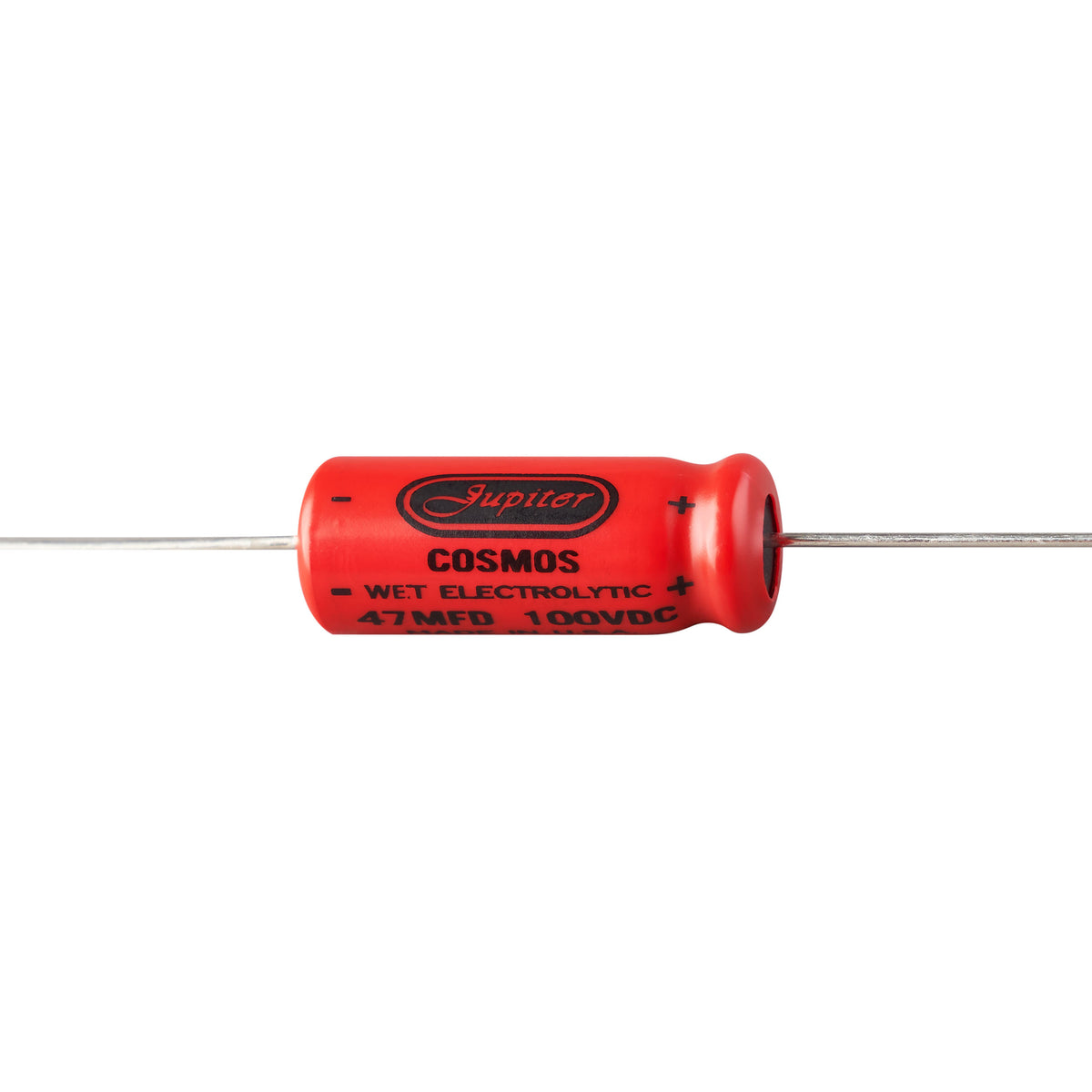

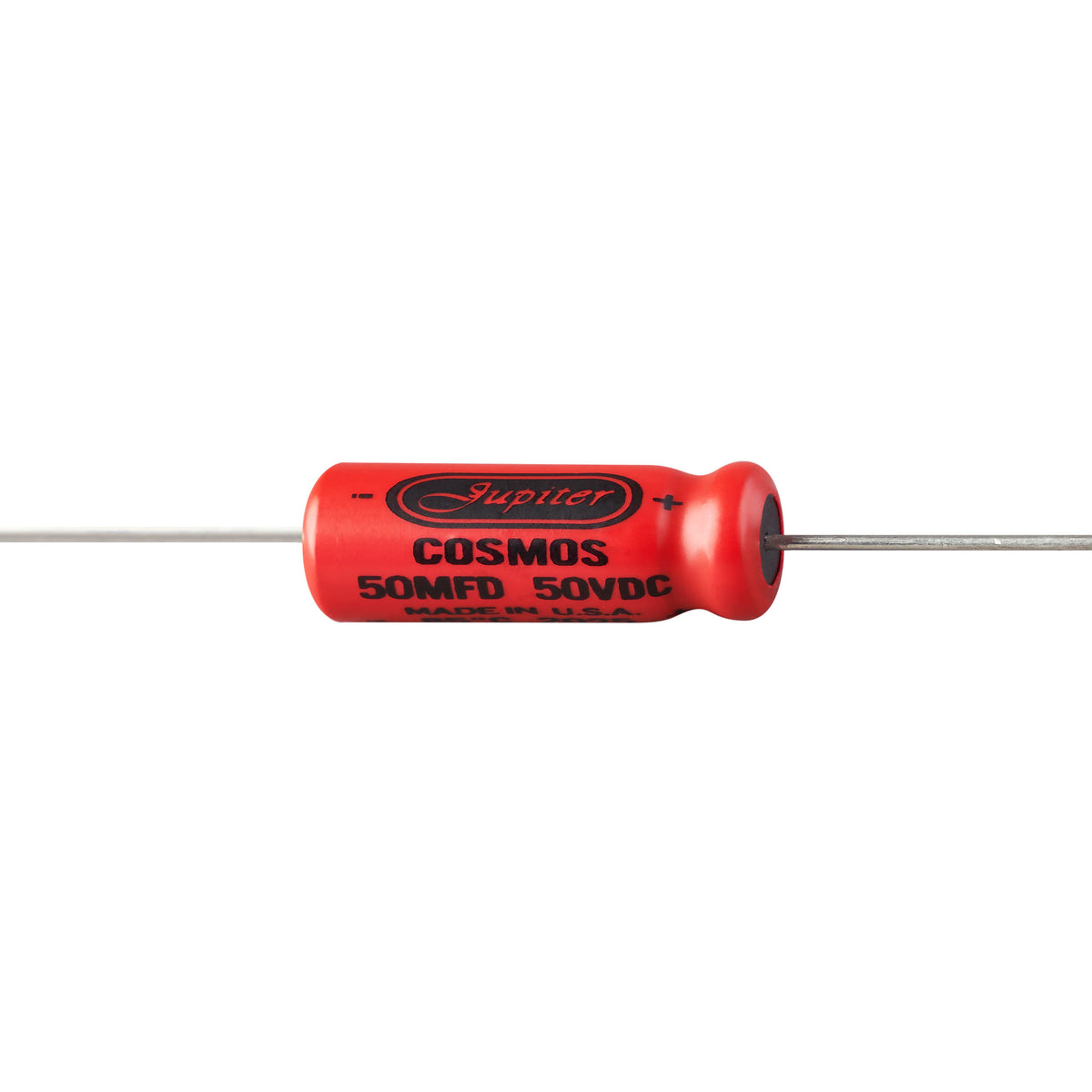

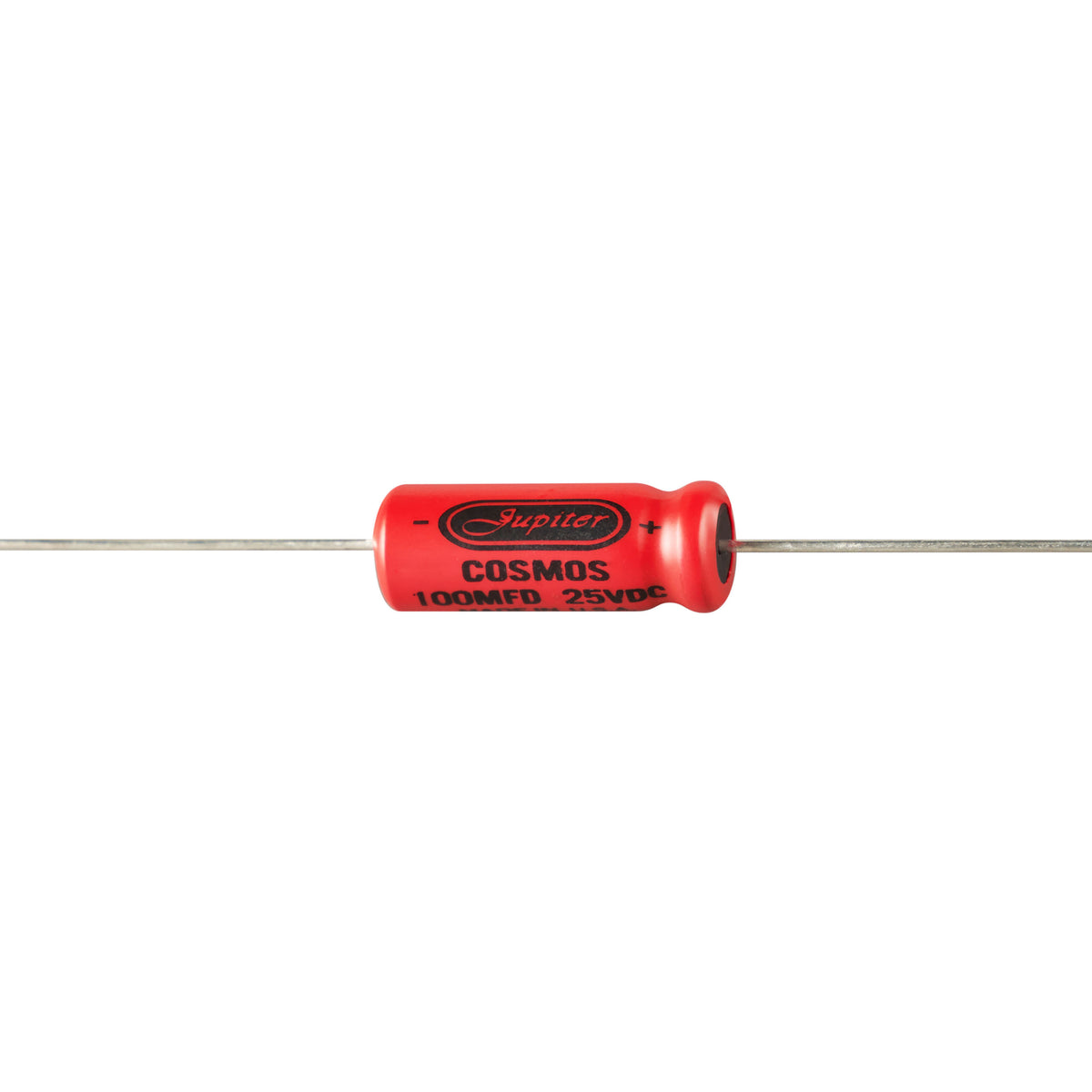

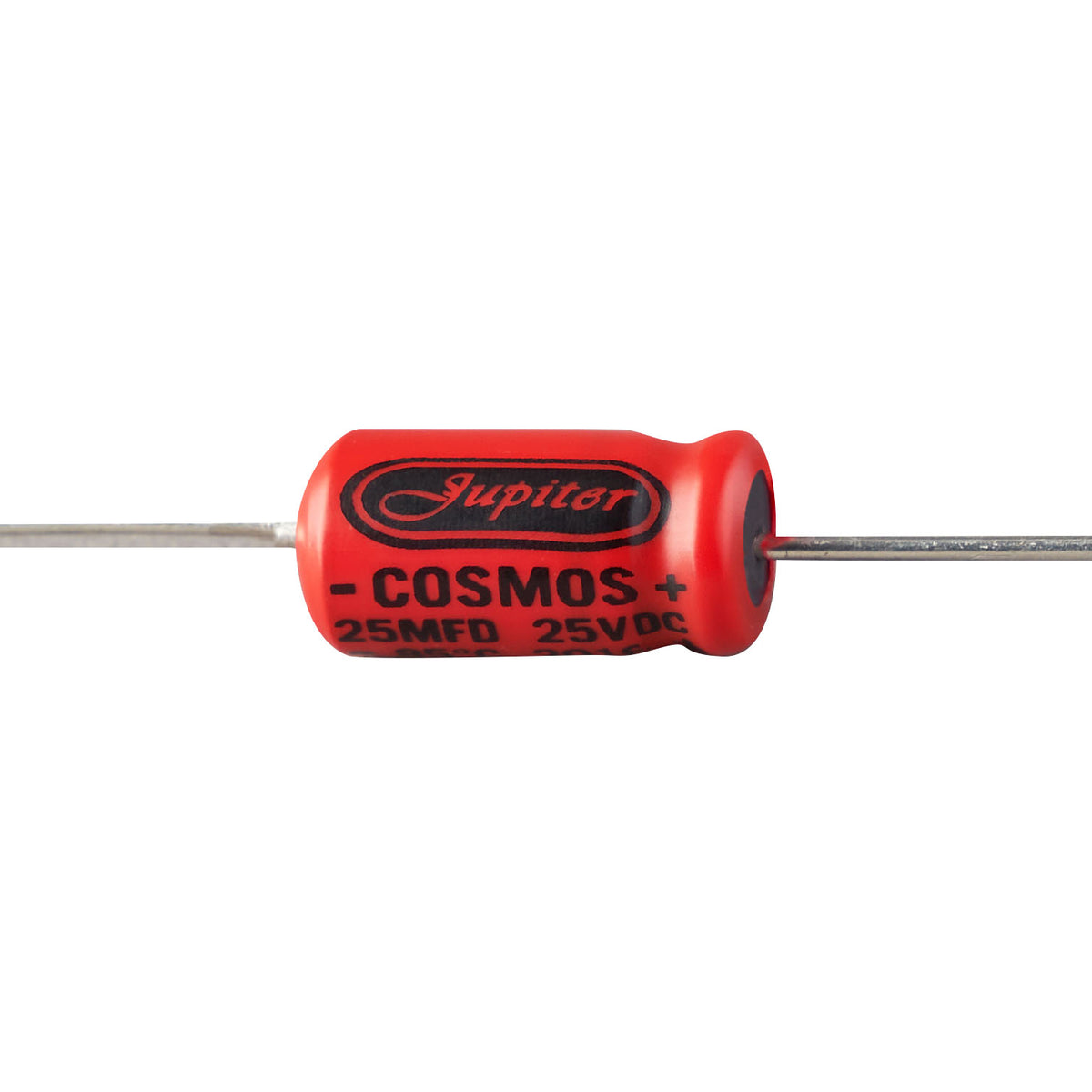

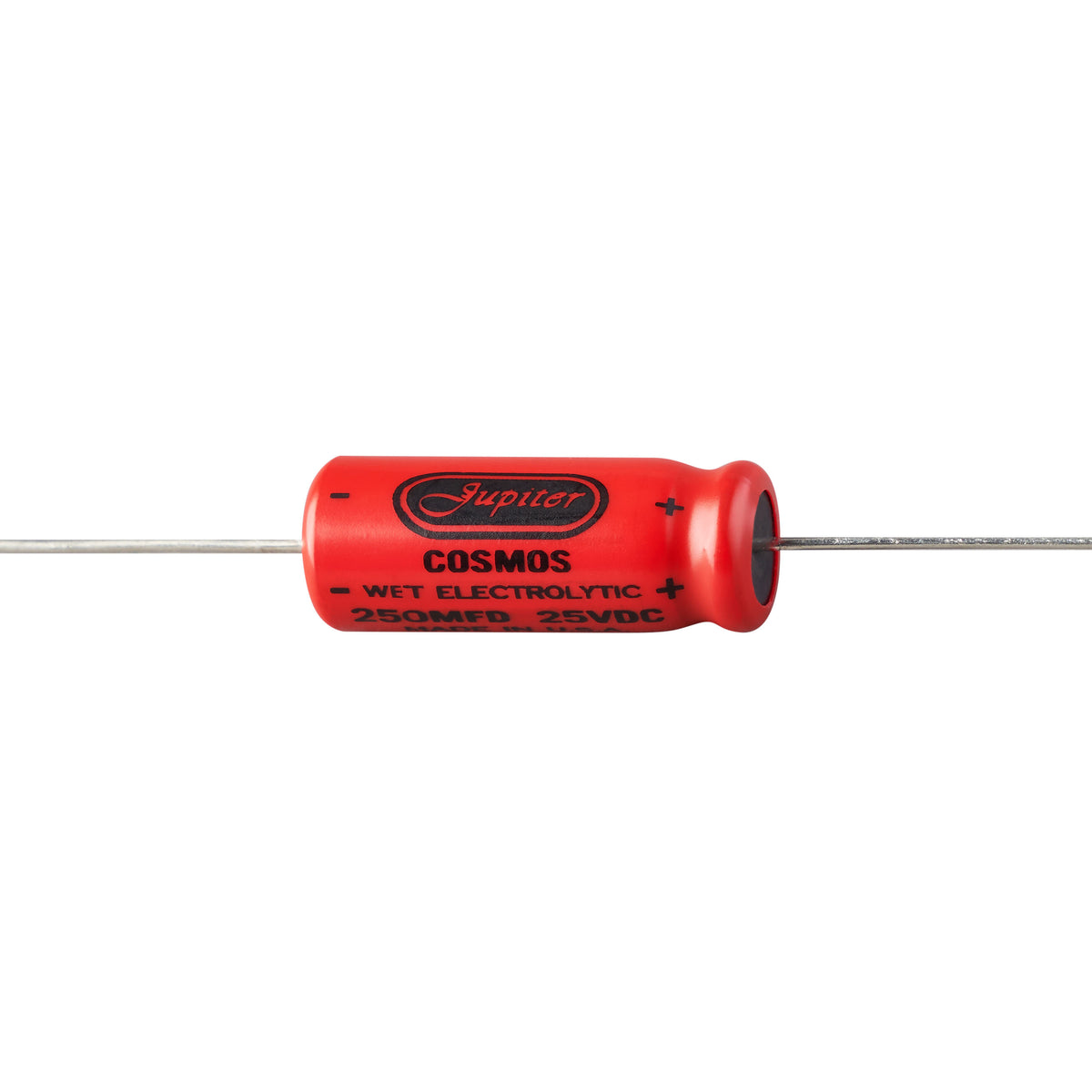

Cosmos Wet Electrolytic Capacitors
Find Your Tone in the Cosmos.
The Cosmos Wet Electrolytic Capacitors present a new axial range from Jupiter Condenser.
Inspired from and designs based on early American Wet Electrolytic capacitors used in audio amplifiers, guitar amplifiers, and pro audio applications.
Available ranging from 10uF to 250uF and voltages from 25V to 500V
"In tube gain stages, I rarely if ever use electrolytic bypass capacitors as I feel they typically ruin the sound. I had a design I was working on that pretty much necessitating I use them though - I did a shootout of all of the major audio electrolytic brands that met the spec I needed, including your cosmos 250uF 25V. As I expected, your capacitor was far and beyond the best and it wasn't even close."
Keenan McKnight
Jupiter Cosmos Wet Electrolytic Capacitor - Download Datasheet PDF
Jupiter Documents and Datasheet PDF
25V
Value | Voltage | Size - D" x L" | Retail Price |
25uf | 25VDC | .25 x .52 | $5.49 |
100uf | 25VDC | .32 x .81 | $6.49 |
250uf | 25VDC | .38 x .95 | $6.79 |
50V
Value | Voltage | Size - D" x L" | Retail Price |
25uf | 50VDC | .32 x .69 |
$6.49 |
33uf | 50VDC | .32 x .69 | $6.49 |
50uf | 50VDC | .32 x .81 | $6.59 |
100uf | 50VDC | .38 x .95 | $6.99 |
100V
Value | Voltage | Size - D" x L" | Retail Price |
10uf | 100VDC | .25 x .69 | $4.99 |
47uf | 100VDC | .38 x .95 | $7.29 |
100uf | 100VDC | .38 x 1.5 | $9.49 |
160V
Value | Voltage | Size - D" x L" | Retail Price |
100uf | 160V | .63 x 1.75 | $12.99 |
220uf | 160V | 1 x 2.13 | $22.99 |

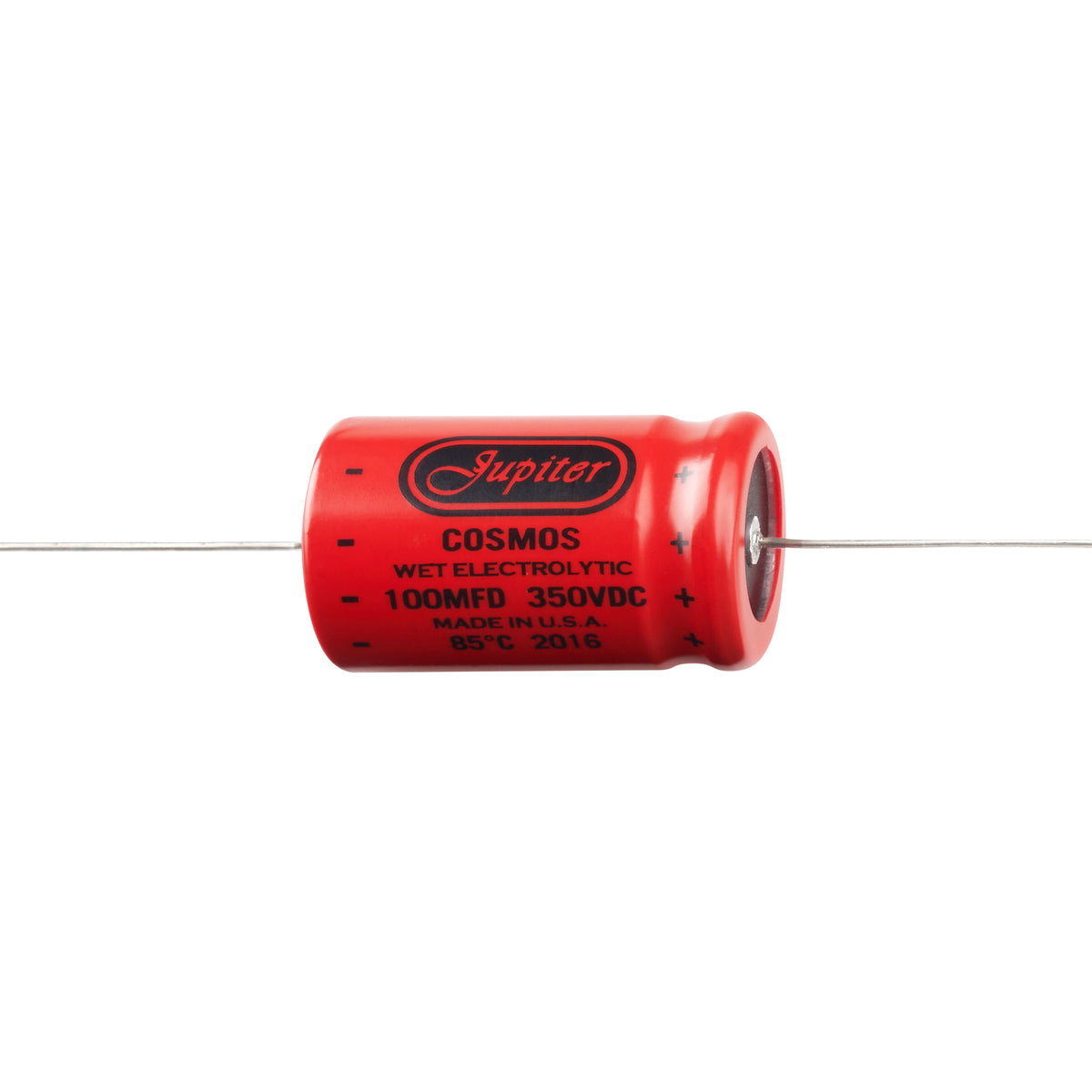

350V
Value | Voltage | Size - D" x L" | Retail Price |
100uf | 350V | 1 x 1.63 | $18.99 |

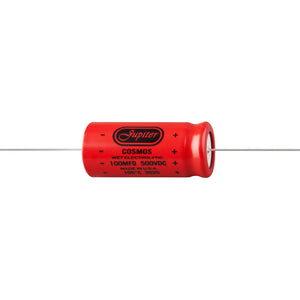

500V
Value | Voltage | Size - D" x L" | Retail Price |
8uf | 500VDC | .50 x .95 | $9.99 |
10uf | 500VDC | .50 x .95 | $14.99 |
16uf | 500VDC | .63 x 1.50 | $15.99 |
20uf | 500VDC | .63 x 1.50 | $16.99 |
22uf | 500VDC | .63 x 1.50 | $16.99 |
47uf | 500VDC | .88 x 1.63 | $23.99 |
100uf | 500VDC | 1.00 x 2.13 | $27.99 |
VT Round Wax and Paper Capacitors Aluminum 100V
A classic design utilizing modern materials and knowledge without forgetting original manufacturing techniques. You will get exceptional detail and nuance, and most importantly great tone.
VT 100VDC Round Wax and Paper Capacitors Aluminum
Handmade wax-paper-aluminum foil audio capacitors for speakers.
Tolerance +/- 5%
Operating Temperature: 70°C
Rated Voltage: 100VDC
Pure Aluminum Foil
Leads - Tinned Copper
Made in the USA of materials made in the USA.
RoHS compliant
Jupiter VT Round Wax, Paper, and Aluminum Foil 100V Capacitors - Download Datasheet PDF
Jupiter Documents and Datasheet PDF
Value | Voltage | Size - D" x L" | Retail Price |
.01uf | 100V | .38 x .82 | $22.00 |
.1uf | 100V | .50 x 1.13 | $26.00 |
1uf | 100V | 1.06 x 2.13 | $55.00 |
1.5uf | 100V | 1.06 x 2.13 | $76.00 |
2.2uf | 100V | 1.31 x 2.13 | $88.00 |
3 .3uf | 100V | 1.63 x 2.13 | $90.00 |
3.9uf | 100V | 1.88 x 2.13 | $93.00 |
4.7uf | 100V | 1.75 x 2.94 | $95.00 |
5uf | 100V | 1.75 x 2.94 | $97.00 |
5.3uf | 100V | 1.88 x 2.94 | $100.00 |
5.6uf | 100V | 1.88 x 2.94 | $106.00 |
6uf | 100V | 1.88 x 2.94 | $110.00 |
6.8uf | 100V | 2.00 x 2.94 | $114.00 |
8uf | 100V | 2.13 x 2.94 | $116.00 |
8.2uf | 100V | 2.13 x 2.94 | $116.00 |
10uf | 100V | 2.13 x 3.94 | $123.00 |
11uf | 100V | 2.25 x 3.94 | $126.00 |
12uf | 100V | 2.25 x 3.94 | $134.00 |
15uf | 100V | 2.50 x 3.94 | $175.00 |
18uf | 100V | 2.50 x 5.00 | $185.00 |
20uf | 100V | 2.50 x 5.00 | $195.00 |
22uf | 100V | 2.50 x 5.00 | $205.00 |

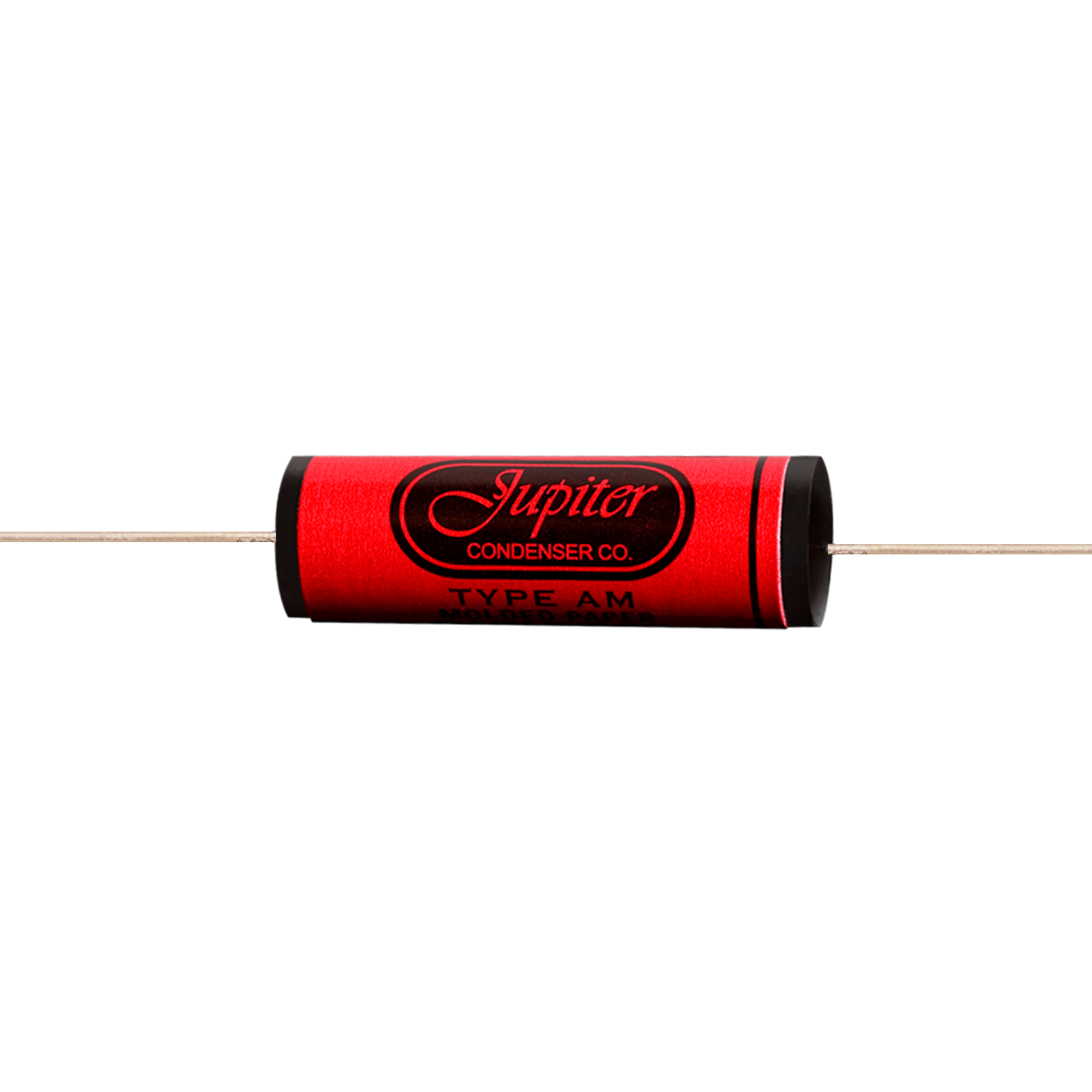

Red Astron Tin Foil Capacitors
Modeled after the legendary Red Astron Capacitors, our capacitors have a similar style to the vintage capacitors to give a very authentic tone and look, yet with high reliability and longevity. This phenolic case potted tinfoil and mylar capacitor yields a uniquely vintage tone perfect for guitar amplifiers and vintage audio amplifiers alike.
Construction: Polyester/Tin Foil
Case: Potted Phenolic Paper
Tolerance: +/-10% typically much closer.
Operating temperature: -55C – 85C, derate 50% at 125C.
Voltage: 600VDC – Tested at 1200VDC (at three stages of production)
*Parts marked 400WVDC for a vintage look, all 600VDC
Leads: 20AWG Tinned Copper
Application: Guitar Amplifier, Guitar Tone Control, Vintage Audio Amplifier
Made in the USA of US-made materials.
Value | Voltage | Size - D" x L" | Retail Price |
.001uf | 600VDC | .38 x 1.00 | $13.99 |
.002uf | 600VDC | .38 x 1.00 | $13.99 |
.003uf | 600VDC | .38 x 1.00 | $13.99 |
.005uf | 600VDC | .38 x 1.00 | $13.99 |
.01uf | 600VDC | .38 x 1.00 | $14.25 |
.02uf | 600VDC | .38 x 1.19 | $14.25 |
.05uf | 600VDC | .38 x 1.19 | $14.99 |
.1uf | 200VDC | .38 x 1.19 | $15.99 |
.1uf | 400VDC | .50 x 1.63 | $16.50 |
.1uf | 600VDC | .50 x 1.63 | $16.50 |
.15uf | 600VDC | .63 x 1.88 | $23.50 |
.22uf | 600VDC | .63 x 1.88 | $25.00 |
.33uf | 600VDC | .63 x 1.88 |

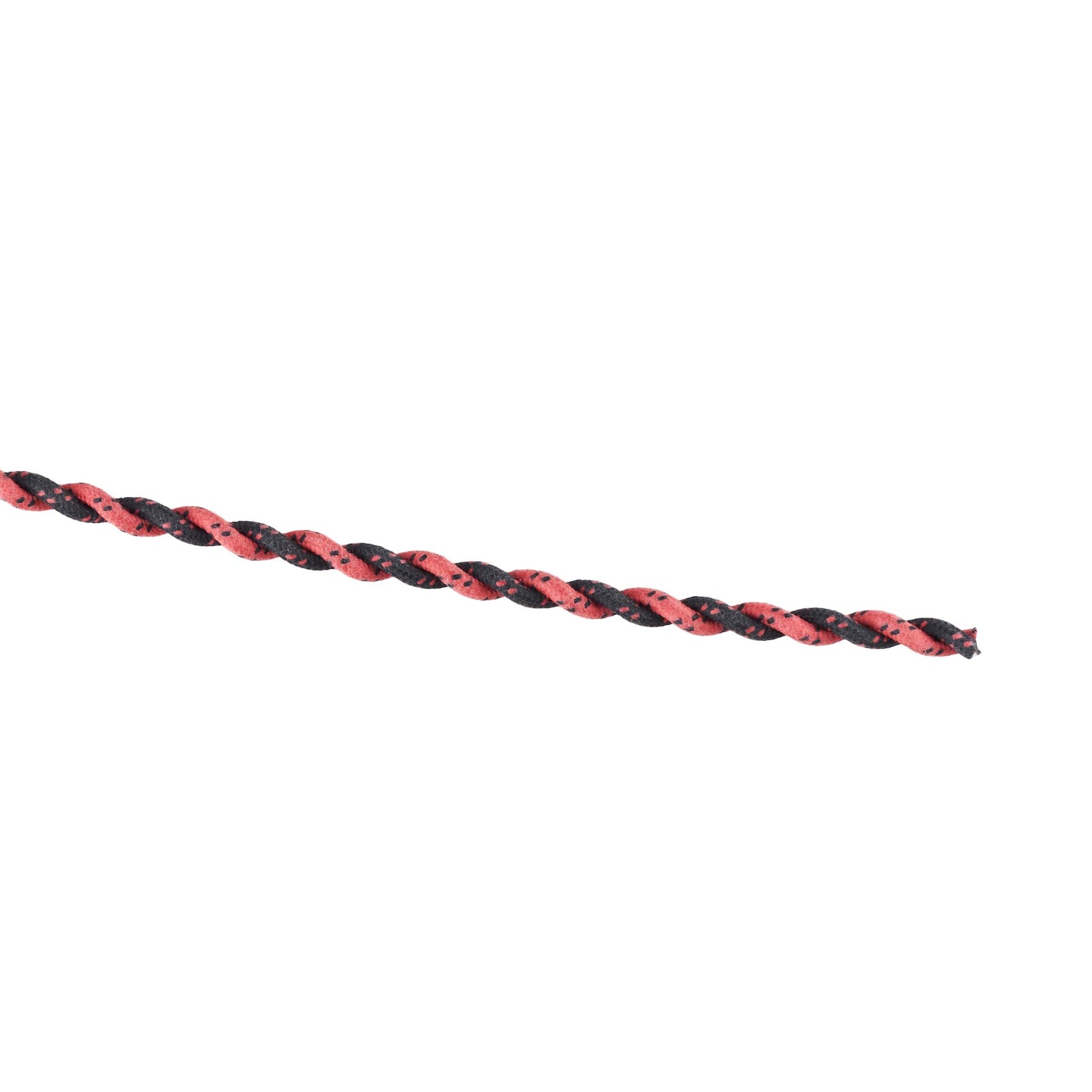

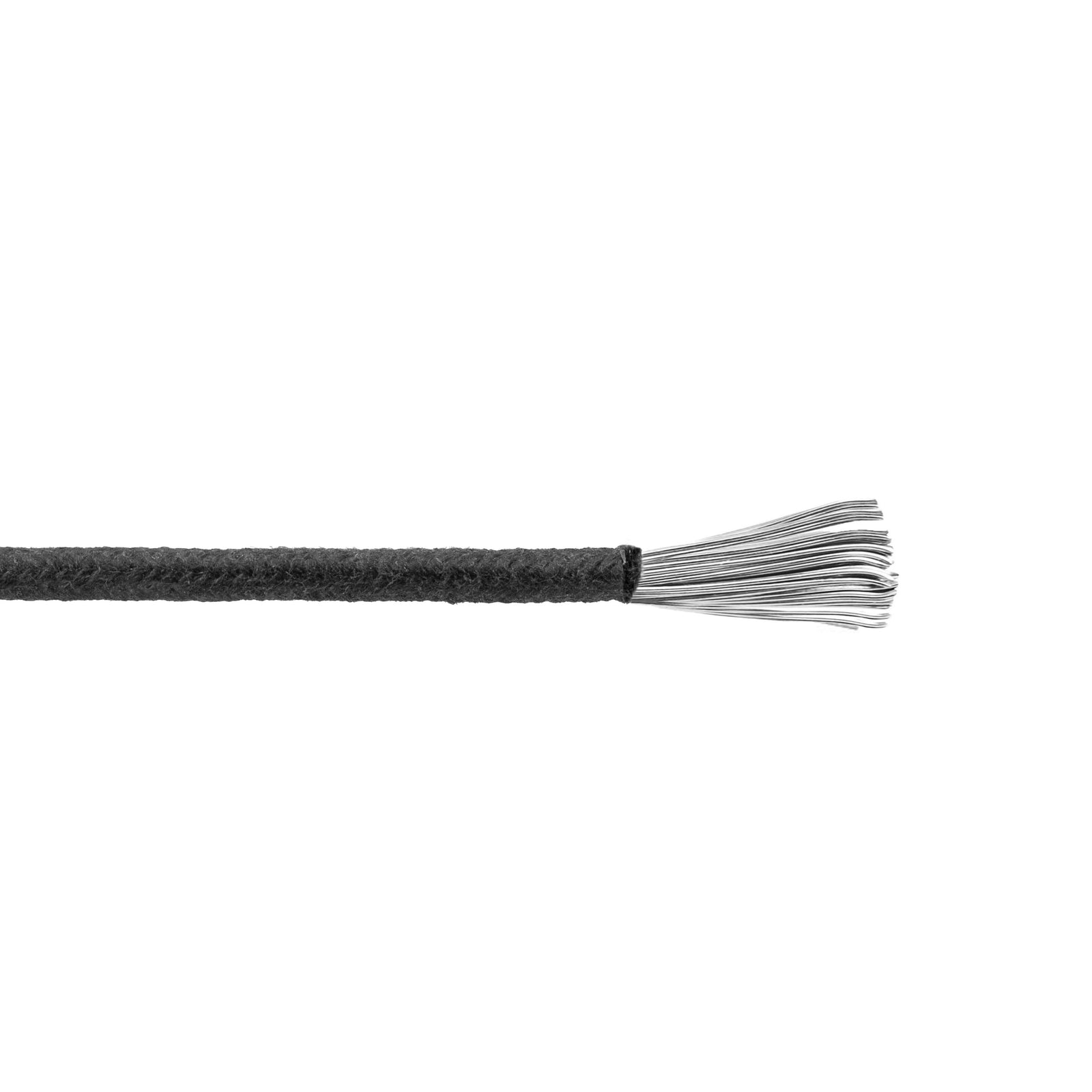

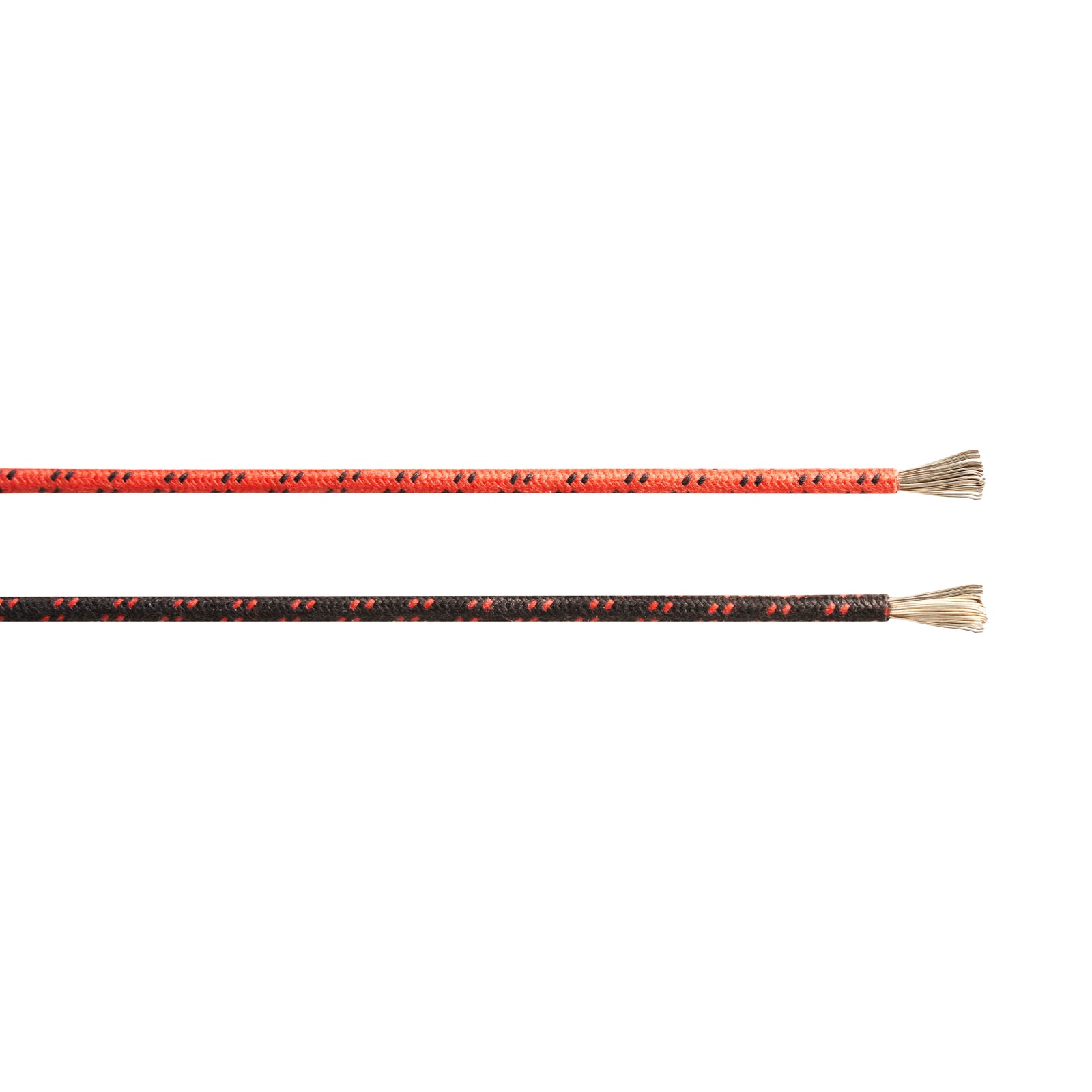

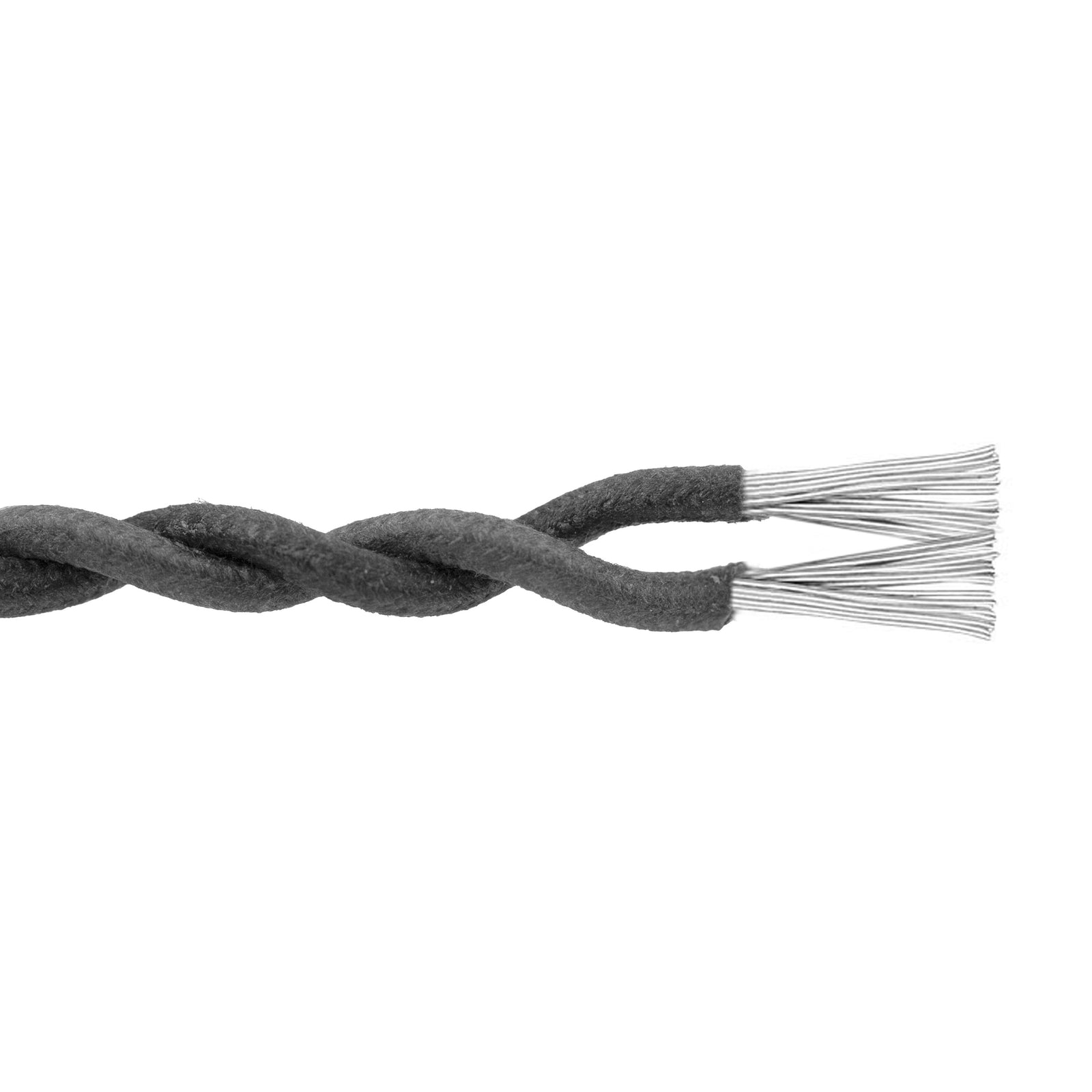

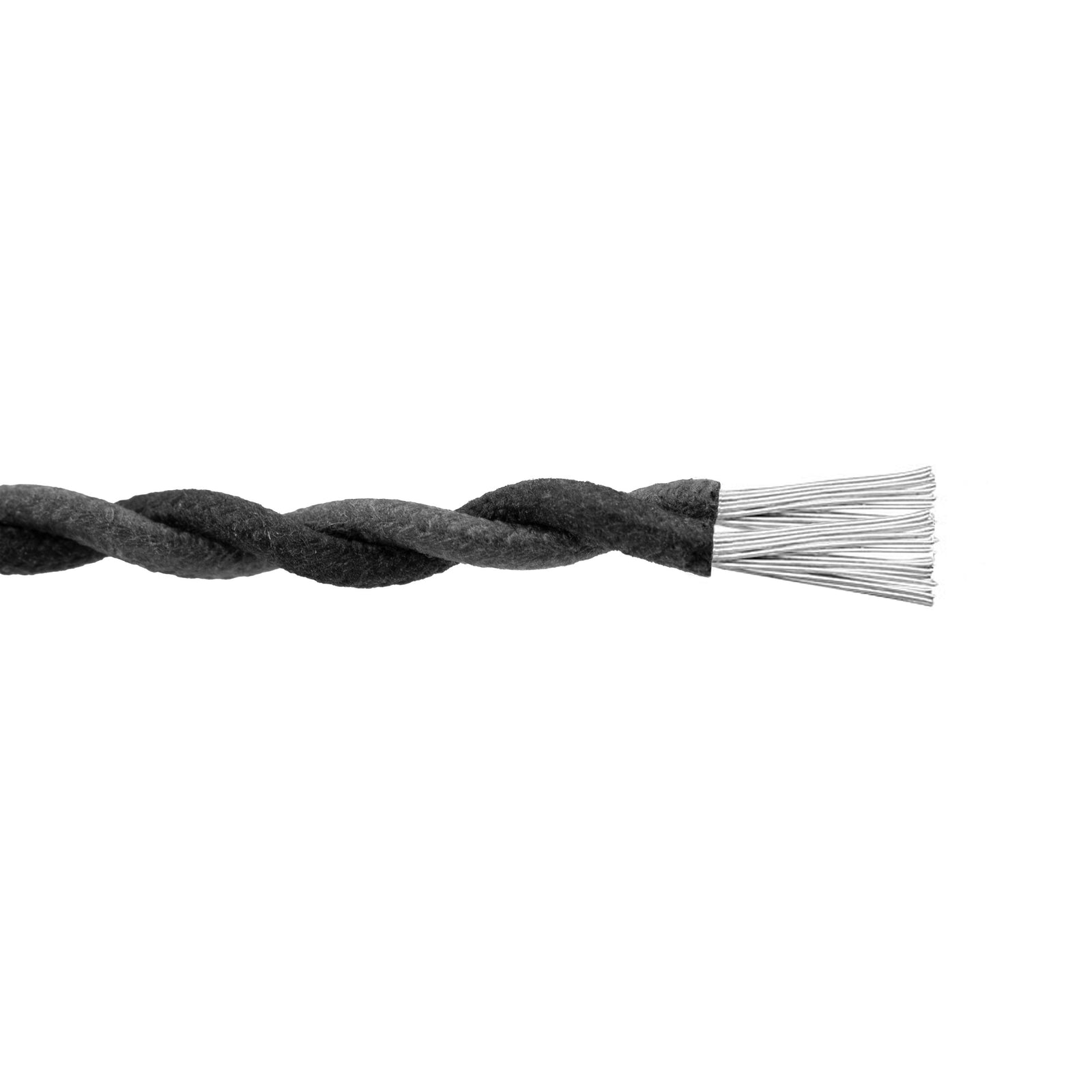

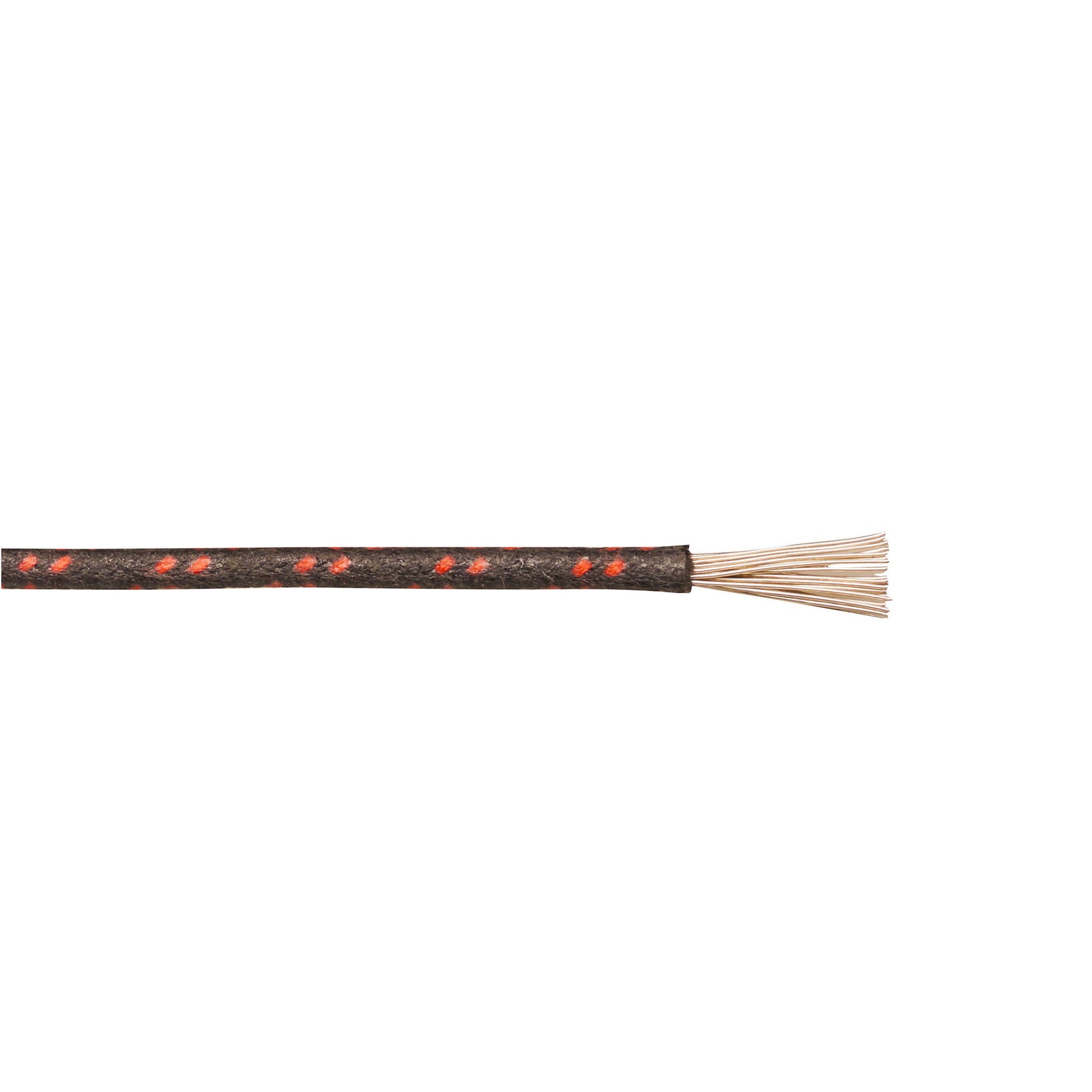

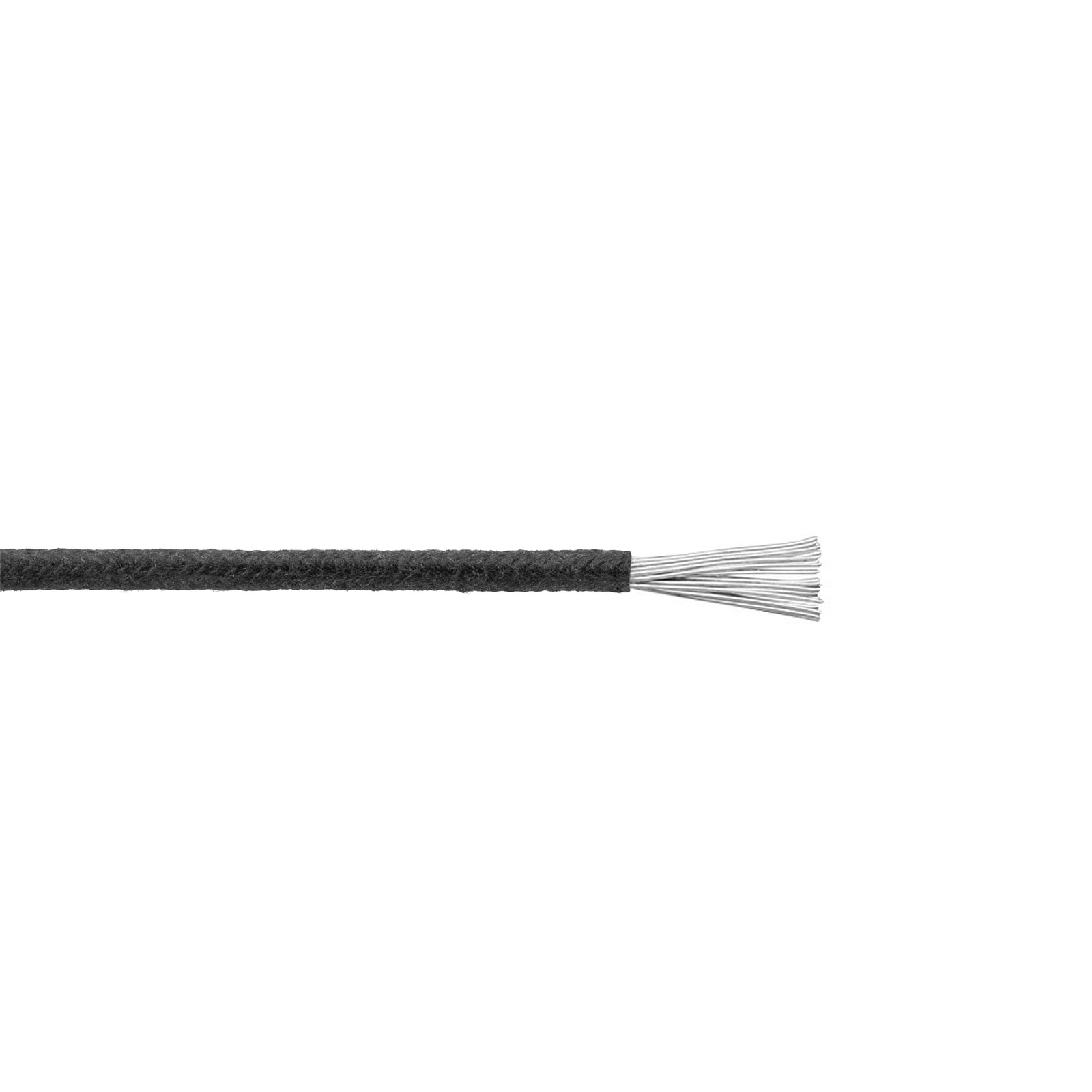

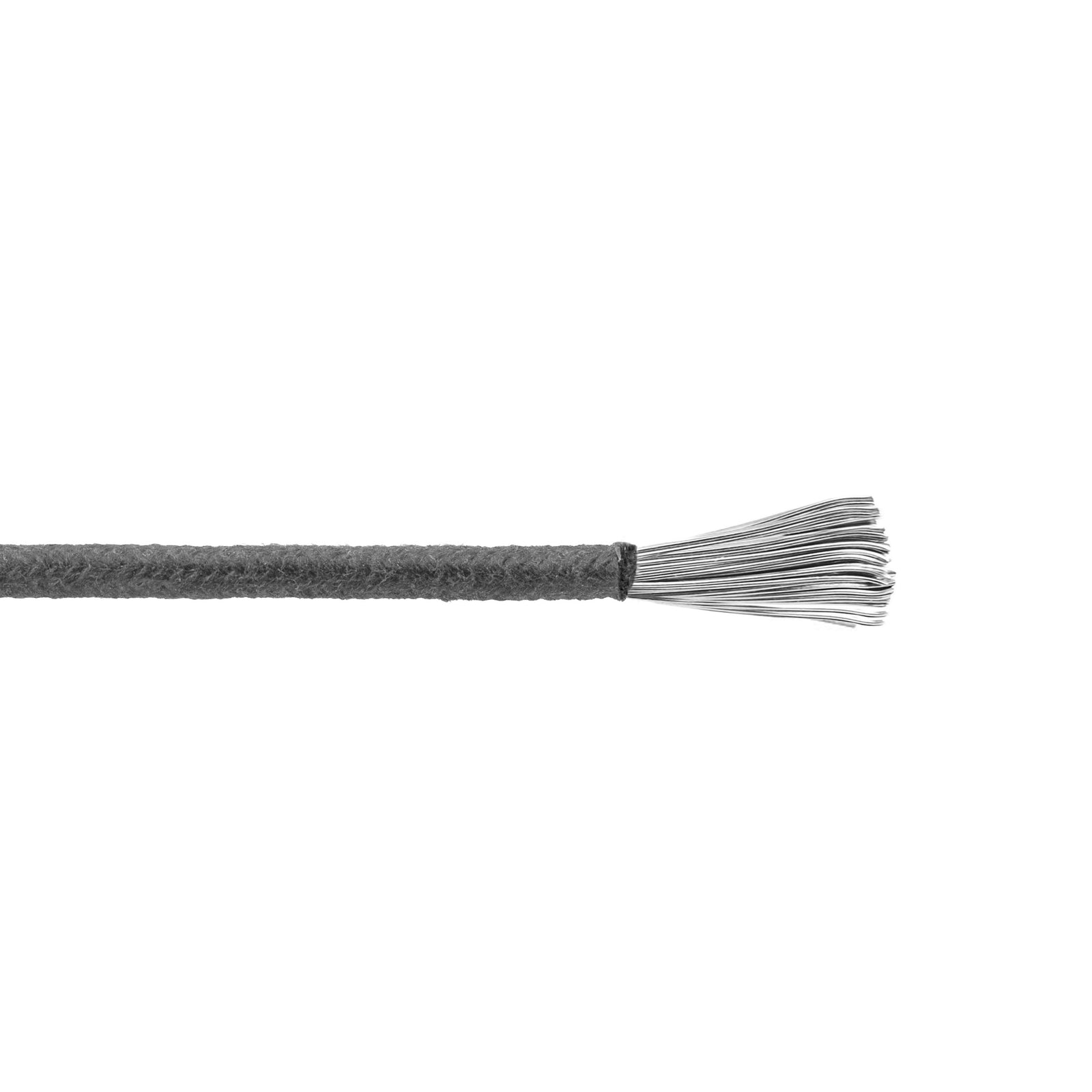

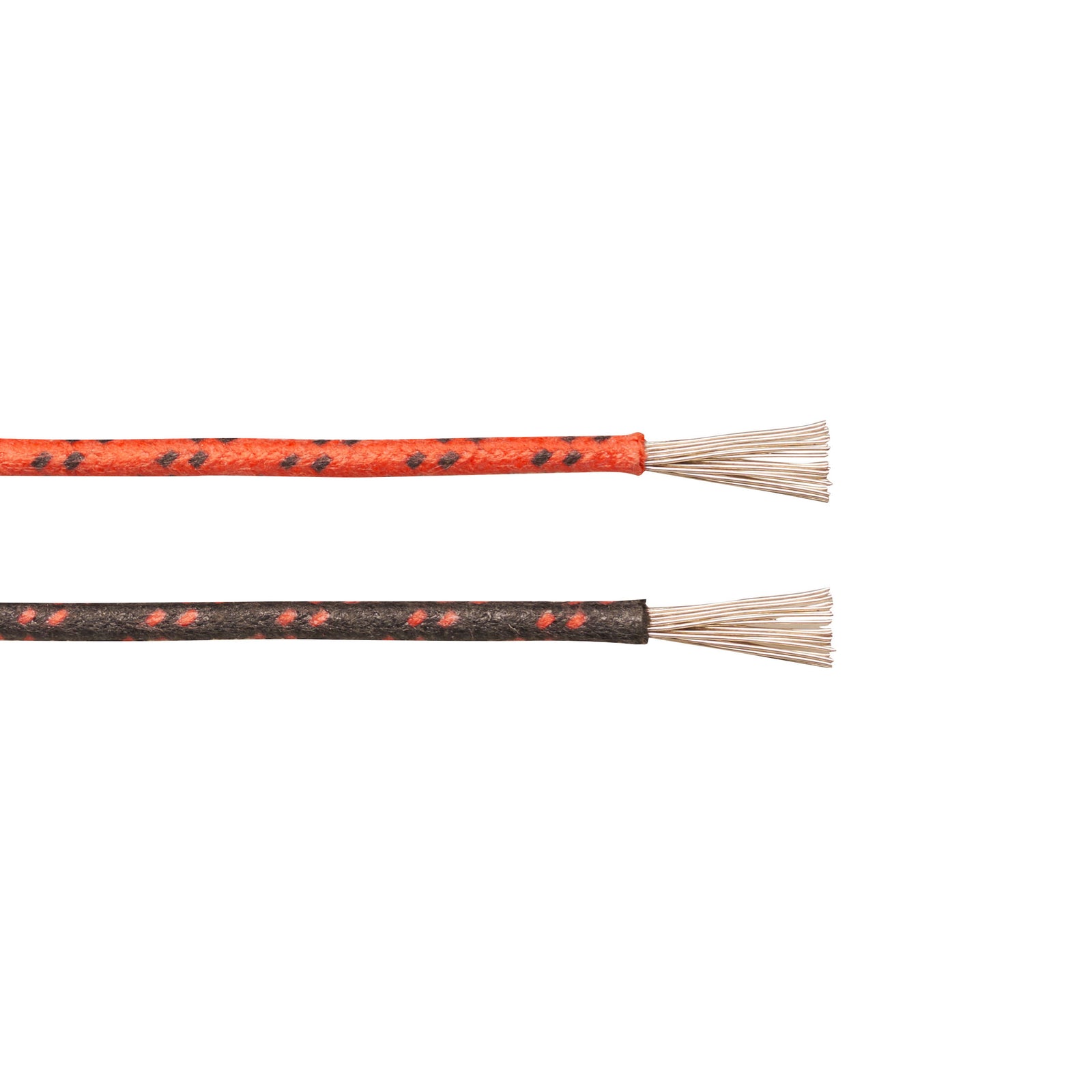

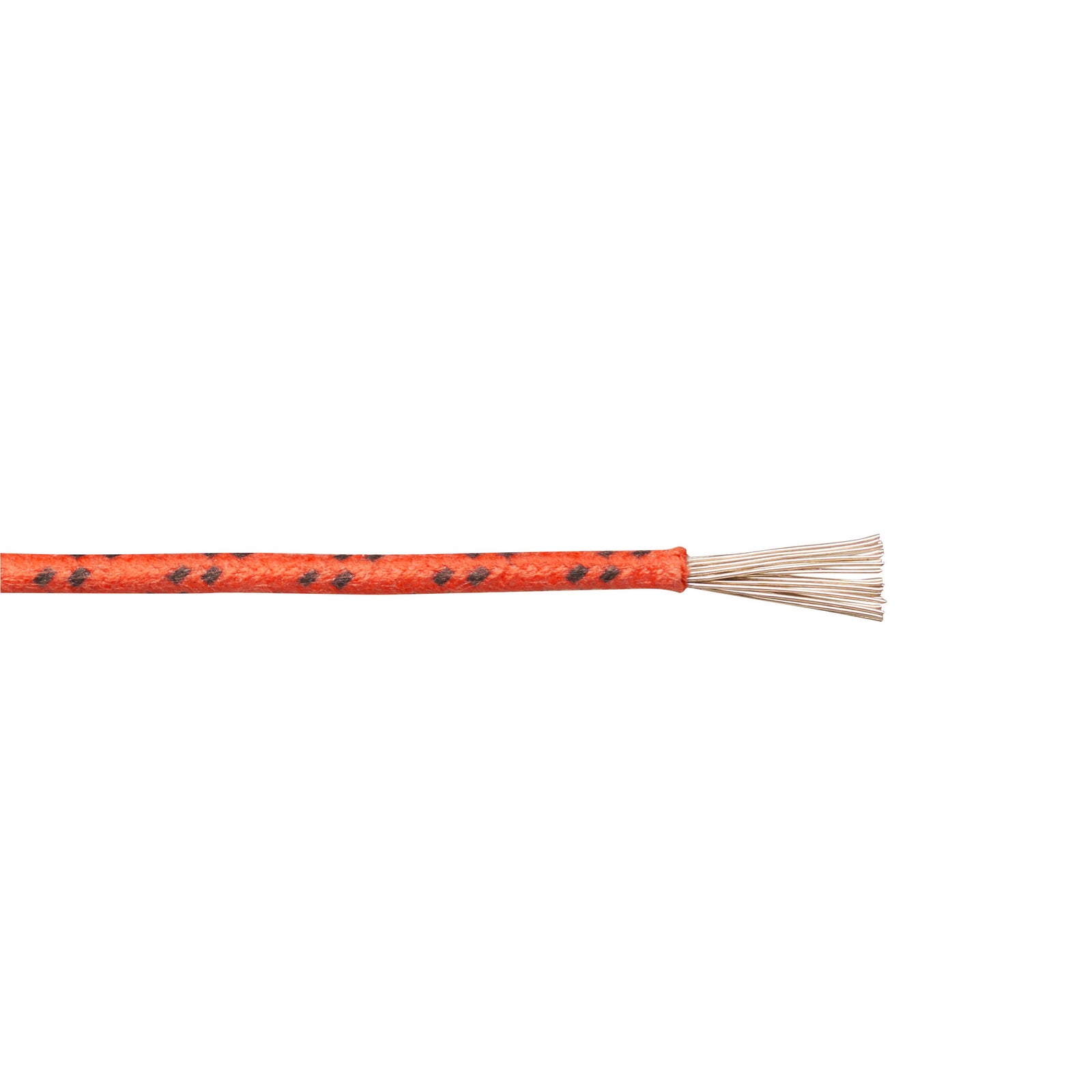

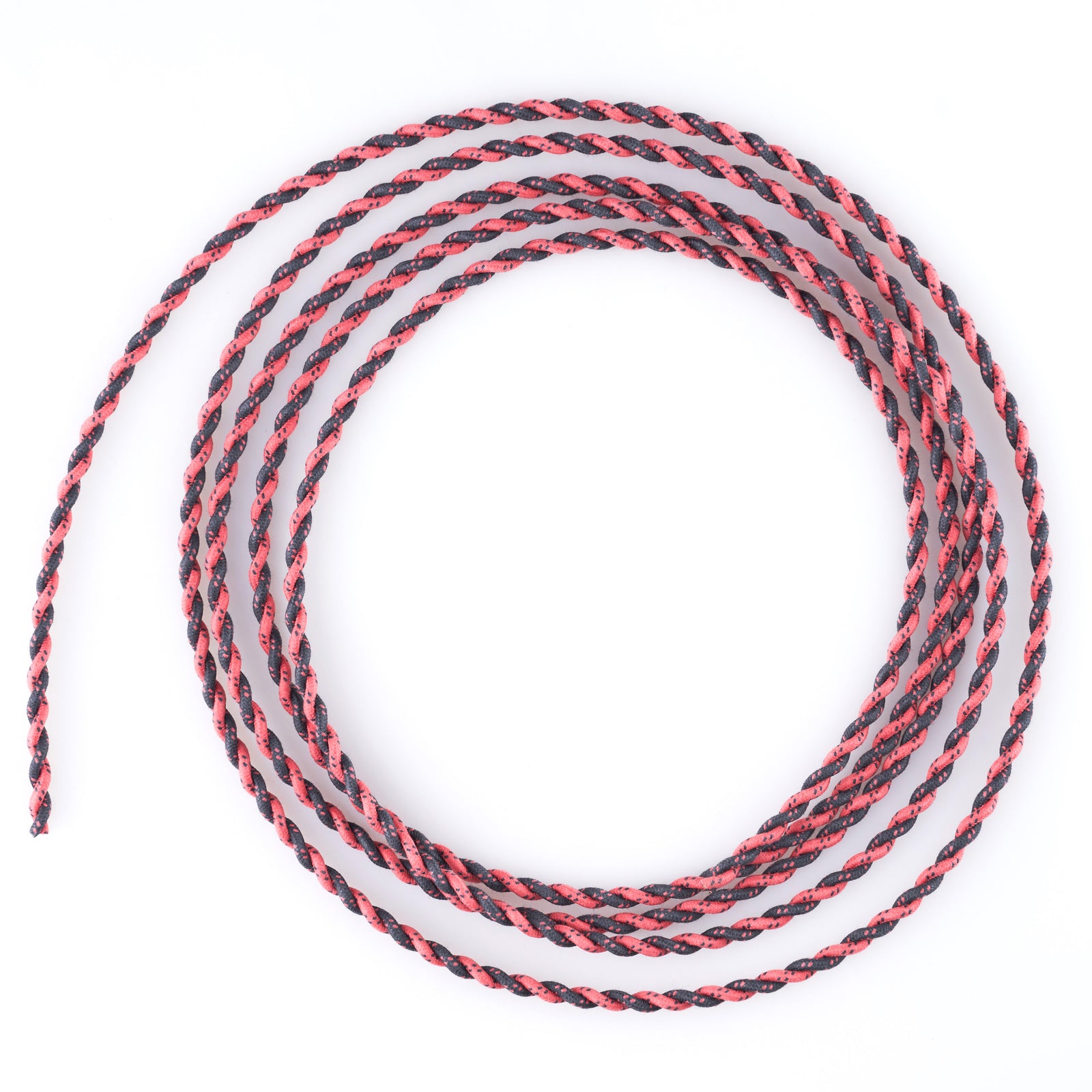

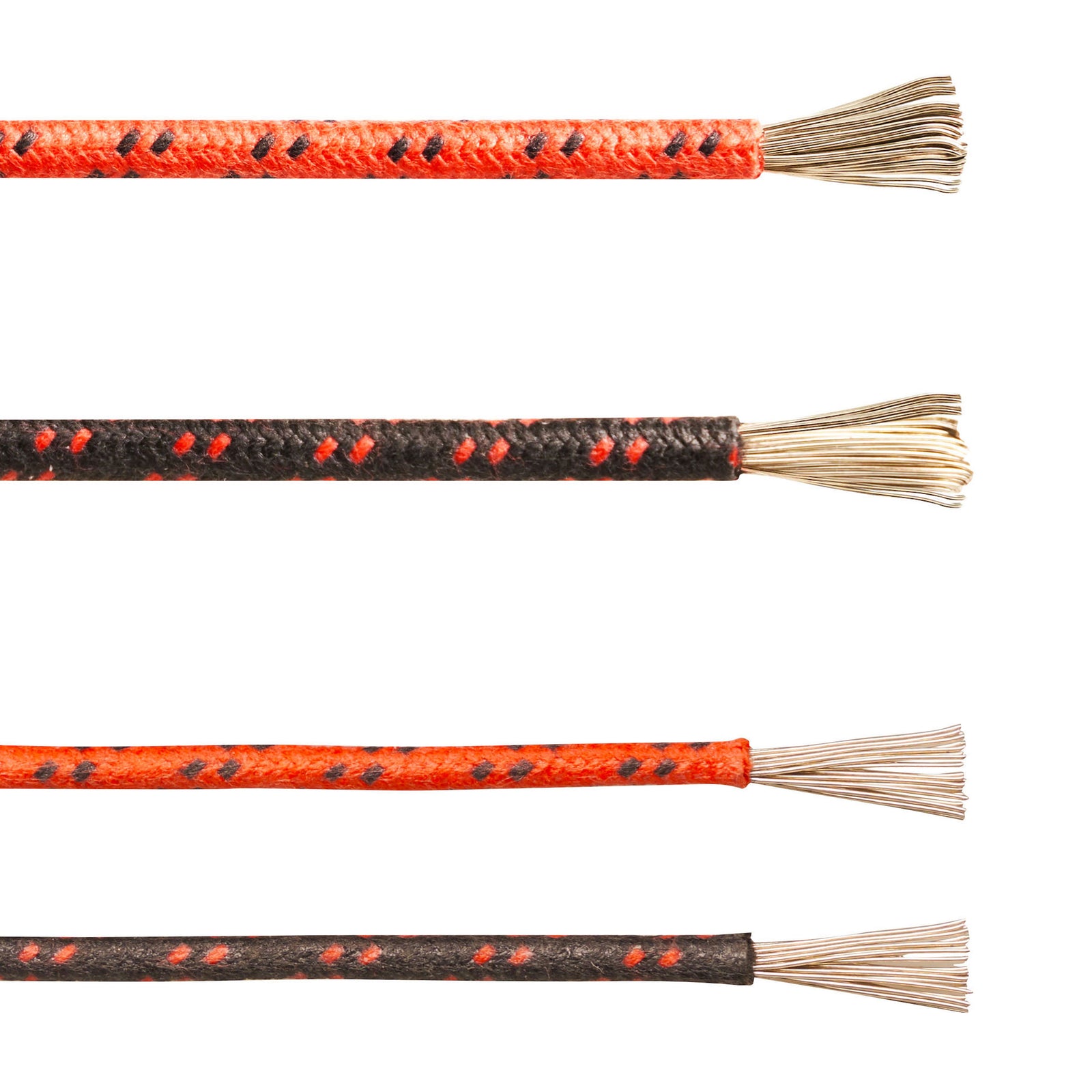

Speaker Cable - Twisted Pair Tinned Copper in Lacquered Cotton Insulation
Jupiter's Twisted Pair Tinned Copper Speaker Cable in Lacquered Cotton Insulation
Stranded Tinned Copper Wire

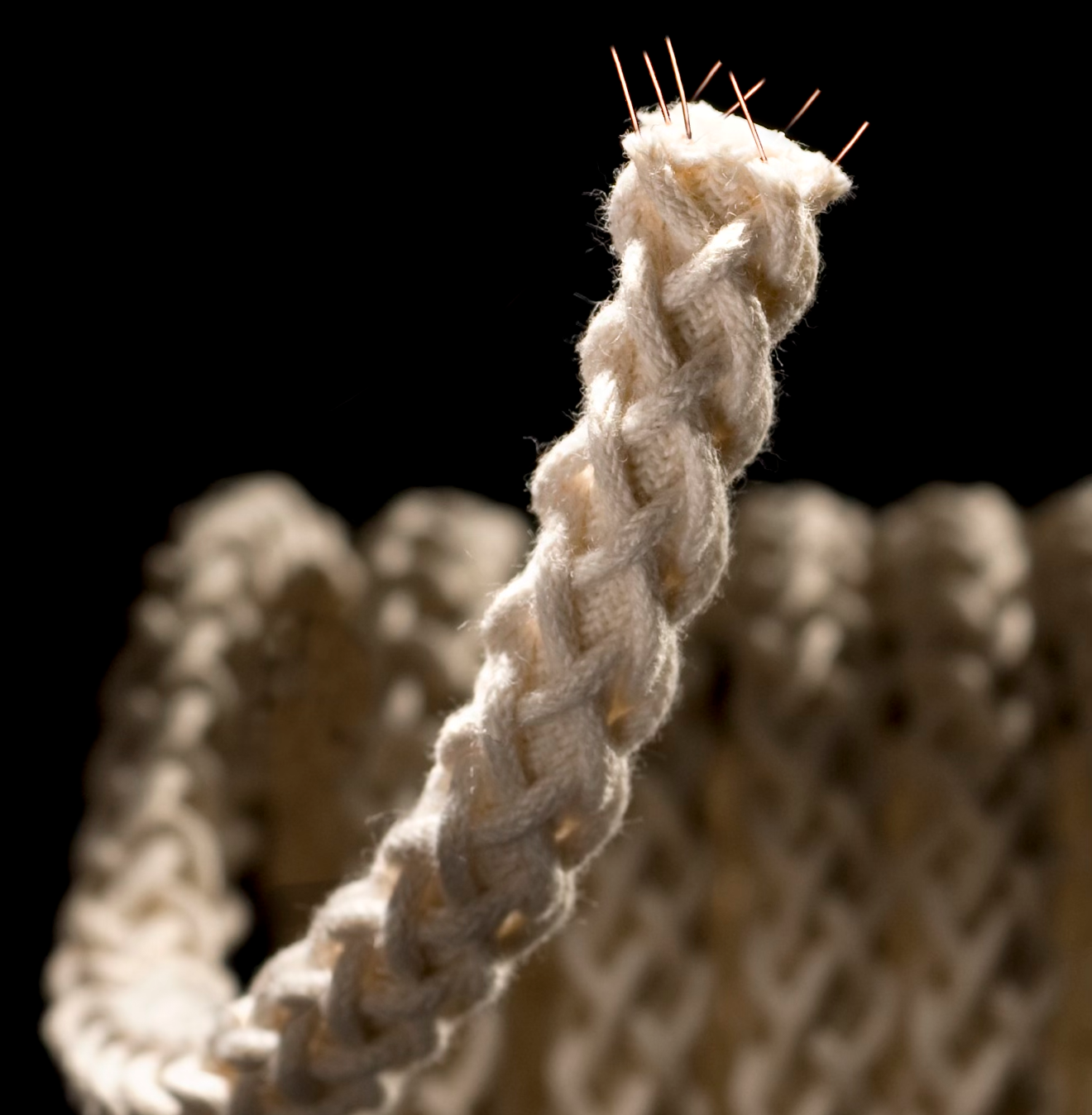

Lacquered Cotton Insulation
Made in the USA of US-made materials.
Lead-Free
16AWG or 12AWG
Colors:
Red & Black

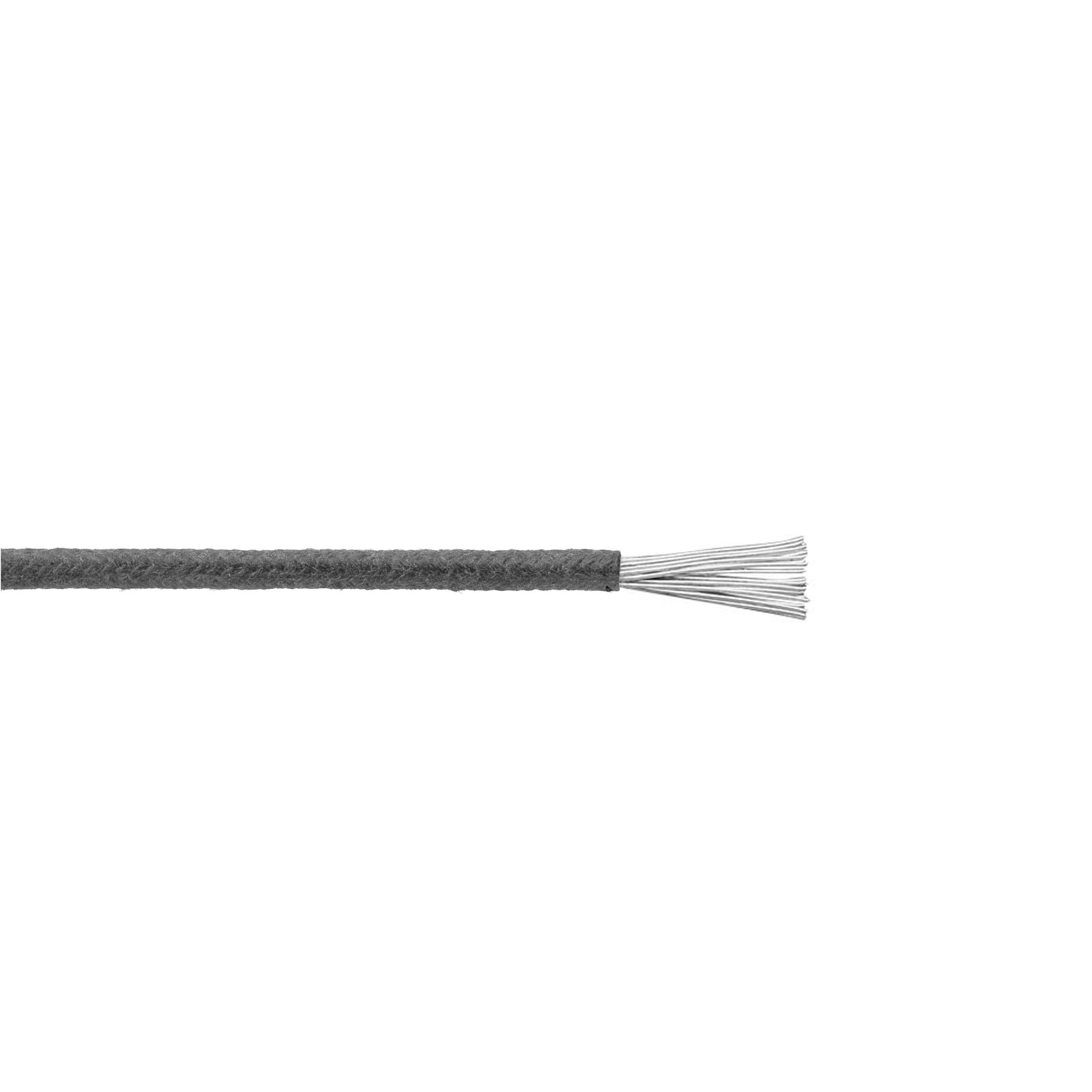

Charcoal & Black
Price Per Foot
Yazaki-san of Japan and the SPEC Corporation
"Today, I'm delighted to introduce you to the Jupiter 16GA tinned plated wire in lacquered cotton. In my last email, I talked about the following.
" I realized and believed that if we want to look for true analog technology, we should listen deeply to the wisdom
of past ancestors found in vintage equipment and the parts forgotten in the flow of time. "
But this Jupiter 16GA is an excellent sample, which humbly learned the wisdom of its predecessors and discovered new possibilities and fascination for audio.
Jupiter 16GA wire I received has a beautiful tin plating because Cristopher-san was truly particular about the purity of tin itself. Using this wire as a speaker cable, it sounds lively and is preferable for me.
I highly recommend this new Jupiter-made-in-the-USA speaker cable to you.
I just talked about the sound of your Jupiter 16GA with my best friend, Nishikawa-san. The sound differences between the new Jupiter 16GA and WE16GA original would be the freshness and the clearness without any cloudiness upon installation into the system.
On the contrary, the burn-in time of the WE16GA original would be a month to several months. Yes, we could enjoy the sound or the music with your 16GA from the beginning.
I believe it's a very positive merit of your cable, especially in hearing the comparison of these cables."
AWG | Color | Retail Price |
2x16AWG |
Red & Black
|
$6.29/ft |
2x12AWG |
Red & Black
|
$10.49/ft |
Tailor-made Jupiter Copper Foil Capacitors used in strategic points throughout the HD and Classic collections.
Jupiter Speakers and Capacitors are used extensively by Milkman in their collection of amps.
Audiophiles and music fanatics love Jupiter Copper Foils in their Zu Audio Speakers.
Check out Carr Amp's "Super Bee" Amplifier featuring some juicy Jupiter Coupling Capacitors and Cosmos Electrolytics.

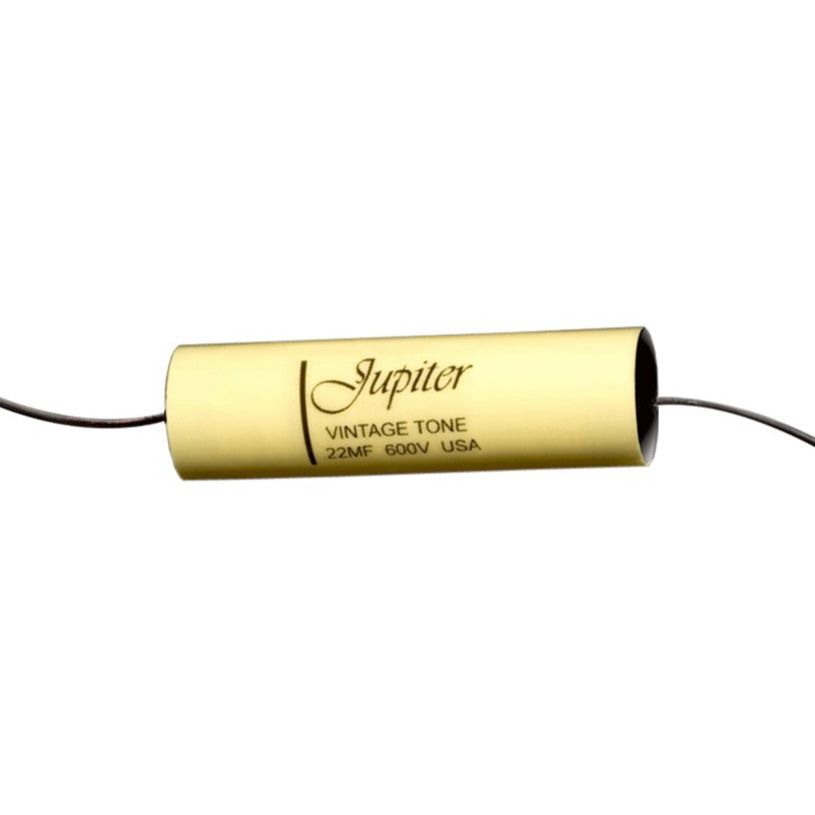

Jupiter Yellow tone caps are featured inside the Z-Luxe and Z-Threapy.
Jupiter Capacitors are used in Fat Jimmy premium and artist builds along with select vintage components.
TRULY INSPIRED BY THE passion and love for music.
Jupiter Condenser capacitors are specifically developed for audio and tone applications. Our wax & paper capacitors are a blend of old and new technology.
Our mission is to reveal the natural vibrance and presence of a recording. All of our capacitors are faithful recreations of the capacitors of the golden years of audio and guitar.
